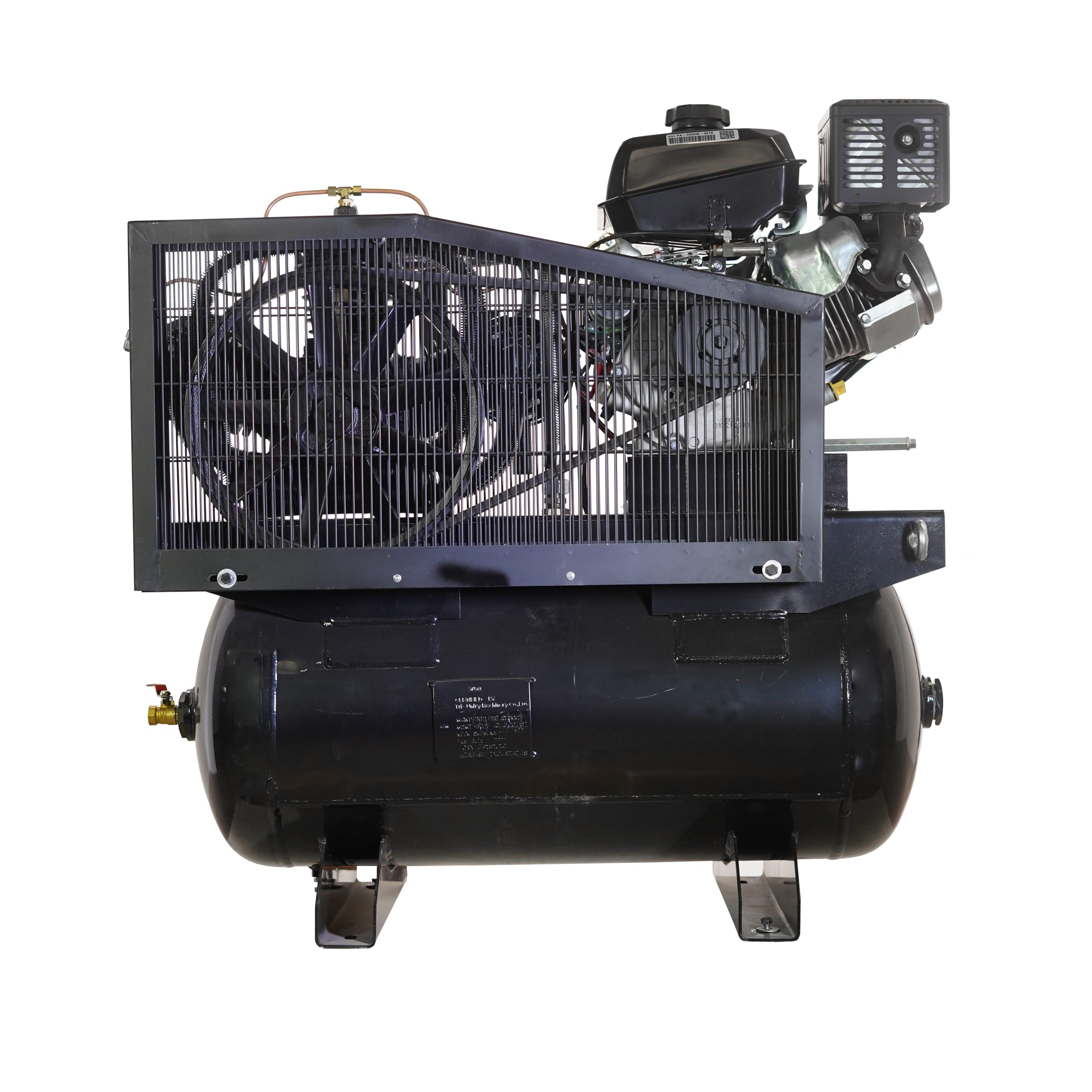

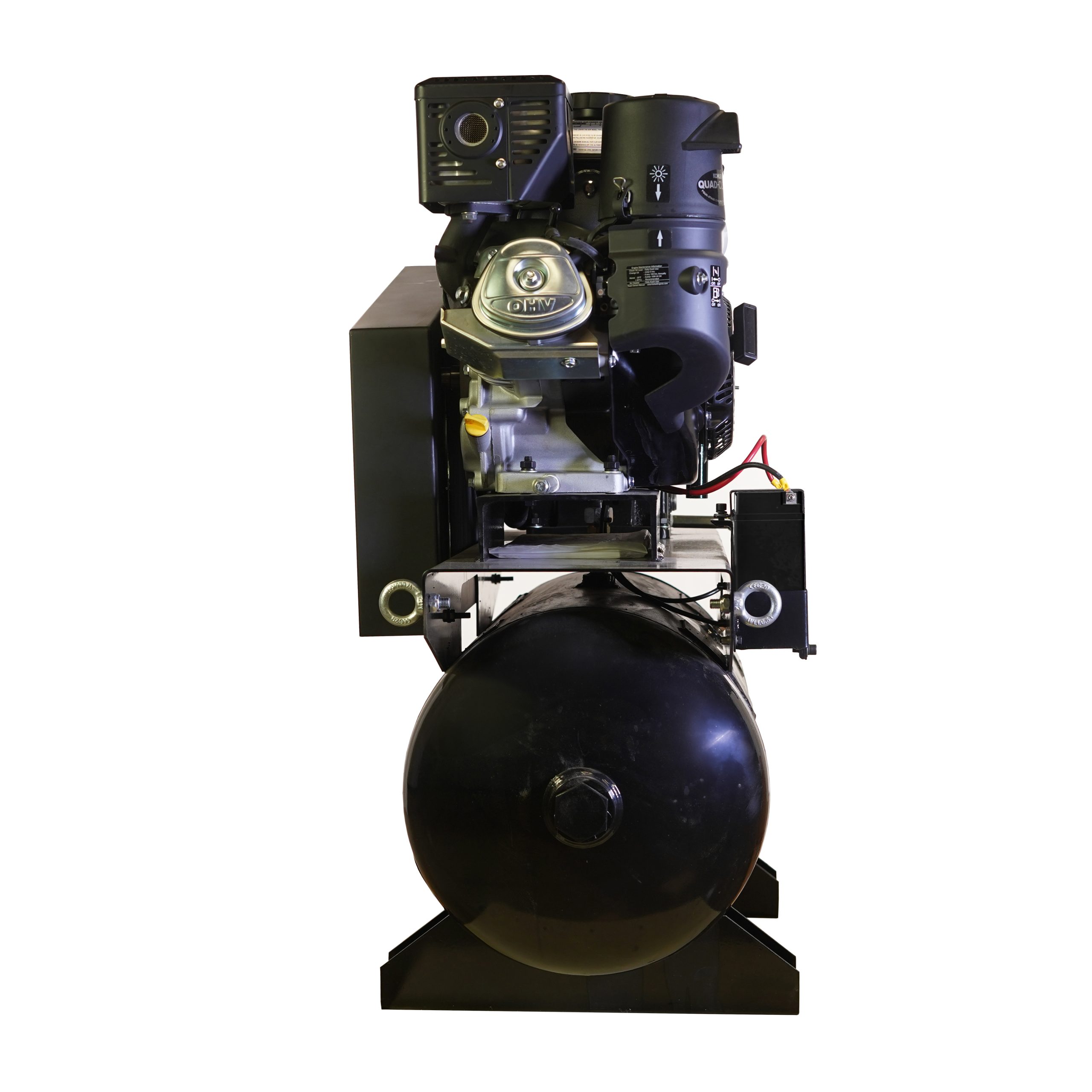

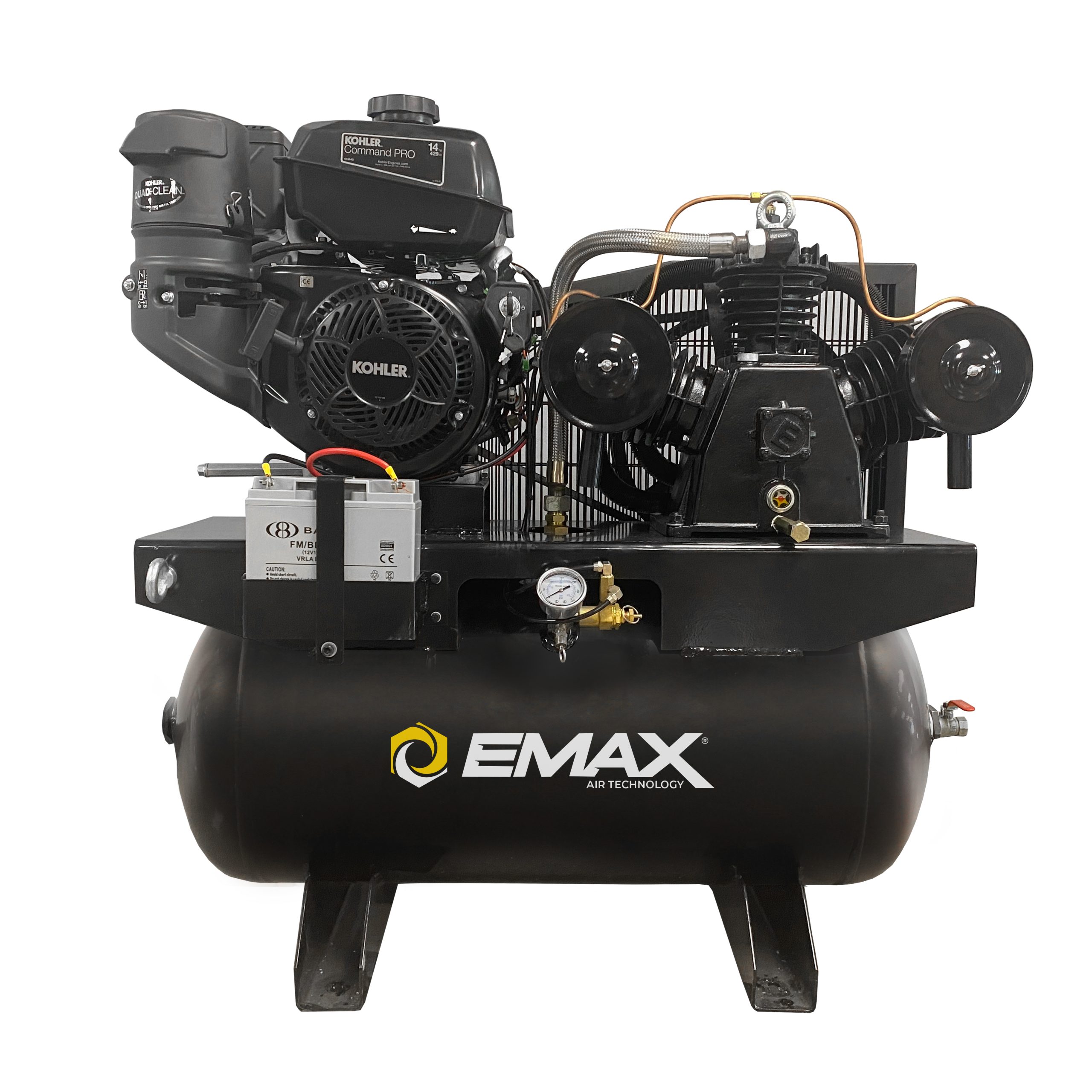

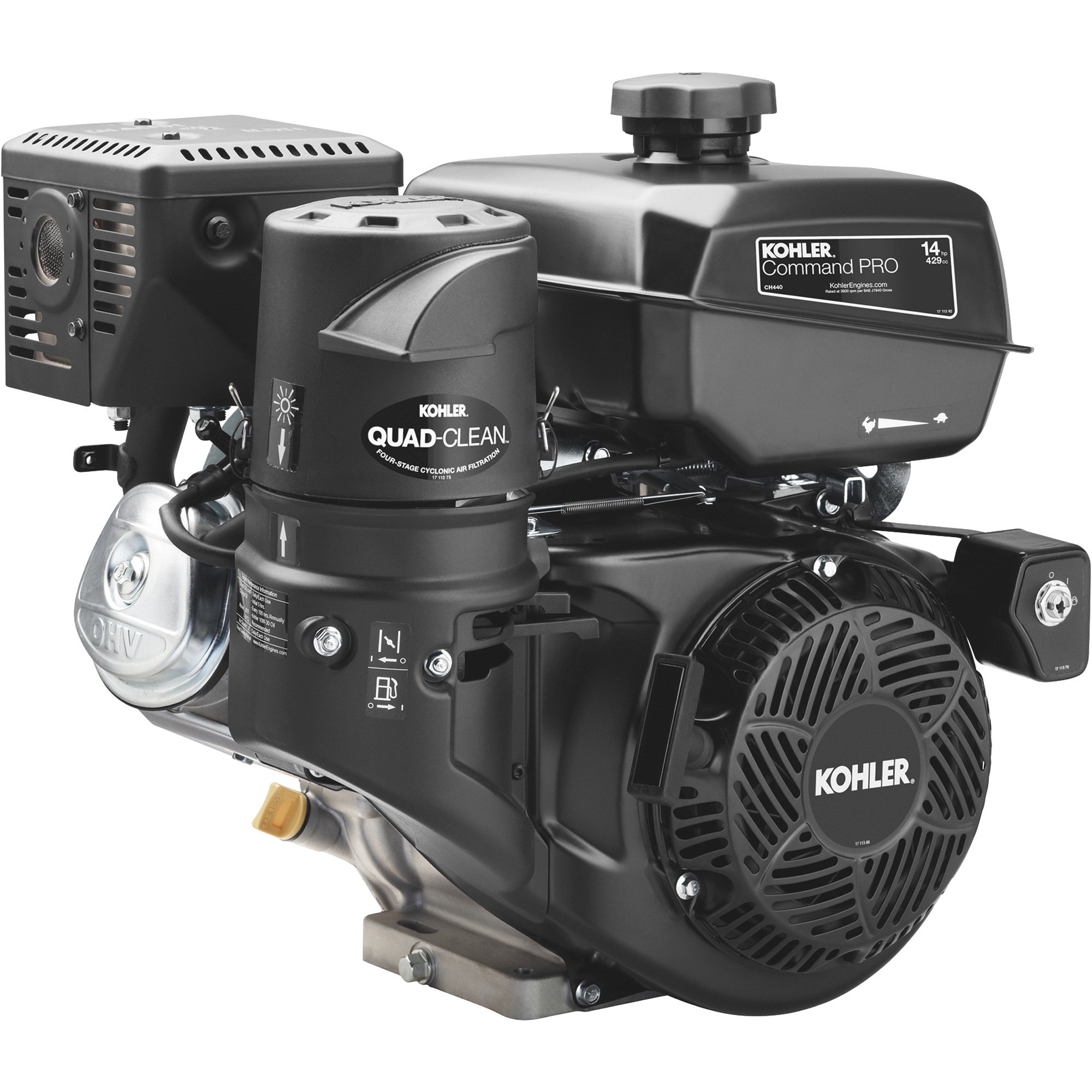

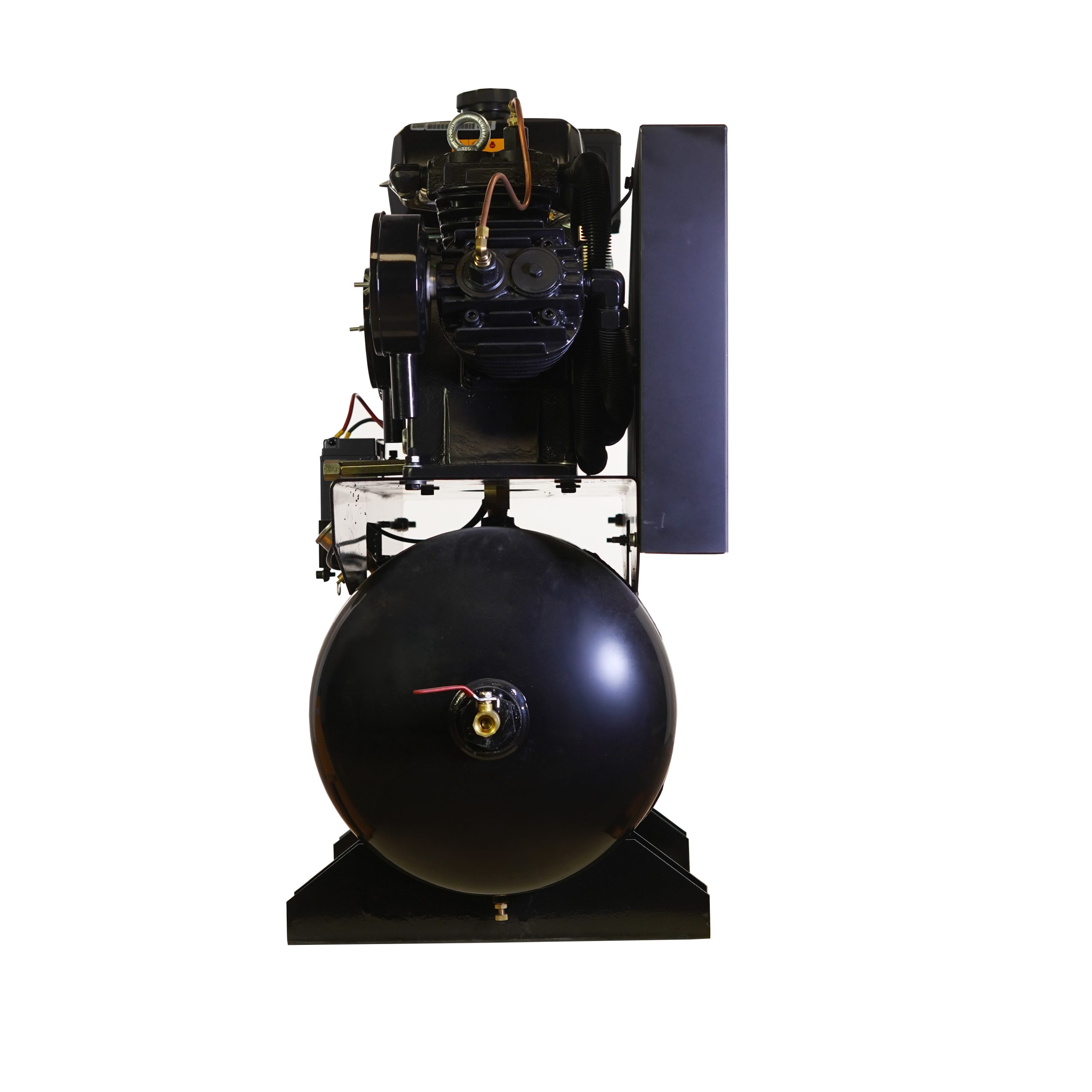

EMAX Kohler Command Pro Gas Driven w/Electric Start 14 HP 3Cyl 24CFM Splash Lubricated 30 Gal.Truck Mount Stationary Air Compressor
SKU: EGES1430ST
Out of stock
Splash Pump
Operation
Splash lubrication systems work by using rod dippers that pass through the oil in the crankcase when the pistons are moving and splash the oil up onto the cylinders and pistons to lubricate them. Although this method is effective, it’s not precise. Parts of the pump may not be receiving enough oil. Where there is not enough oil, wear between critical components can become a costly issue… on the other hand too much oil can also be in issue as well.
Viscosity
Viscosity of the oil becomes important with splash method as well, if the oil is not thick enough it will not cling to the dippers as needed. So, although effective it is becoming an outdated method.
History
Traditional splash lubrication systems have been around since the first air compressor was produced.
Belt Tensioner
Smooth, Accurate, and Long-Lasting
Dual-Bolt Belt Tensioner
Our dual-bolt belt tensioner makes belt adjustments easier and more precise. This design ensures proper alignment while maintaining optimal belt tension, reducing wear and tear for longer belt life and enhanced serviceability. Using pry bars to tension your belts is no longer required.
Belt Drive | V-Belt Design
Power You Can Rely On
Unlike competitors using narrow, single A-width belts, our compressors feature a multi-belt drive
system with B and C-width belts. This design provides:
● More surface area for better grip
● Reduced belt tension, minimizing strain on motor and compressor bearings
● Lower noise and vibration, extending belt and system life
The result is a durable, efficient, and a low-maintenance drive system built for thousands of hours
of trouble-free use.
| Brands | EMAX |
|---|---|
| HP | 14 |
| Tank Size | 30 |
| Drive Type | Gas |
| Tank Drain | Manual |
| Pump Type | Splash |
| CFM | 26 |
| Silent Air | N |
| Smart Air | N |
| Compressor Type | Piston |
| Motor Type | N/A |
| Tank Orientation | Horizontal |
| Duty Cycle | 0.6 |
| Outlet Size | 1/2" |
| Belt Count | 2 |
| Pump Stage | 2 |
| Pump Riser | Y |
| Belt Tensioner | Y |
| Mag Starter | N |
| Radiator | N |
| Continuous Run | Y |
| CFM At Max PSI | 24 |
| Battery Included | NO |
| Pump RPM | 770 |
| Motor RPM | 3600 |
| Max PSI | 175 |
| Oil Capacity | 1.6 |
| Oil U/M | Quarts |
| Start Type | FIXED |
| Estimated Pump Life (Hours) | 50000 |
| Certifications | ASME,CRN,EPA |
| Service Kit | EFKIT039 |
