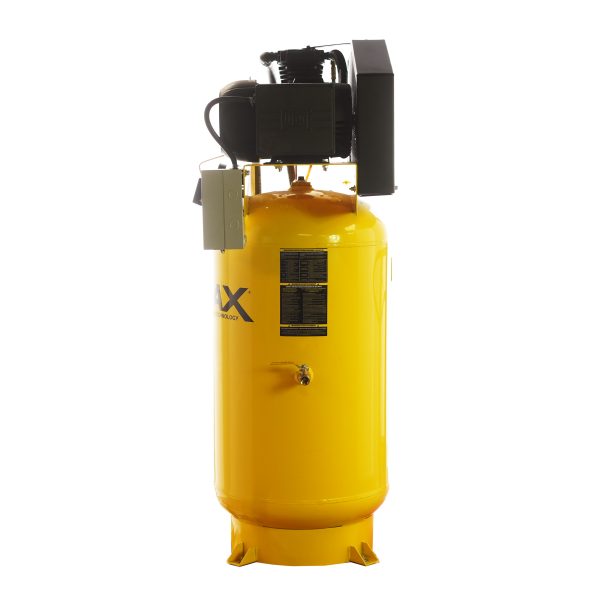

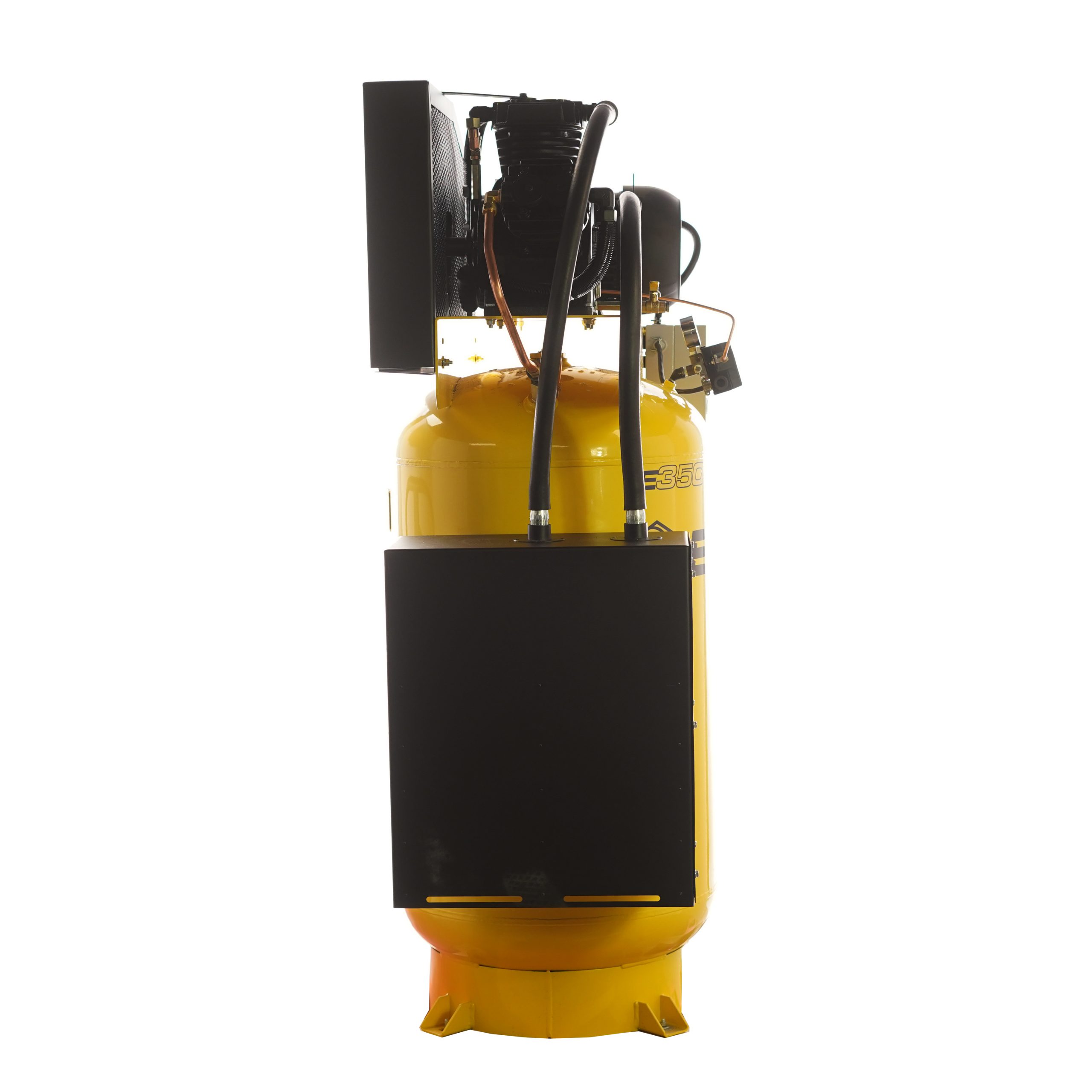

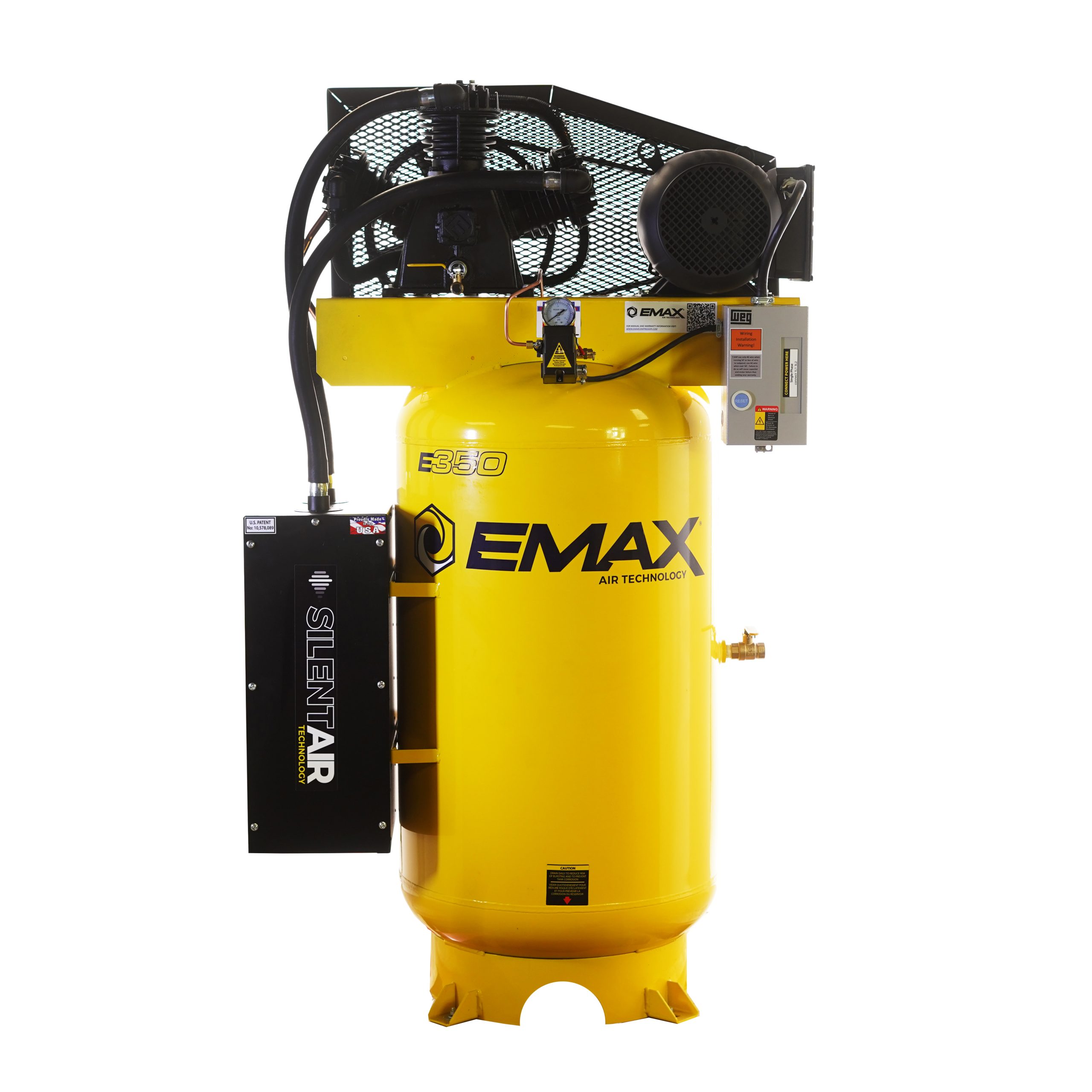

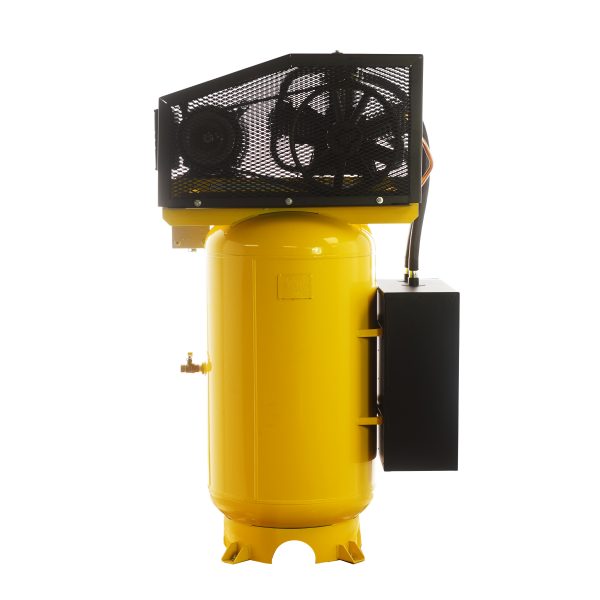

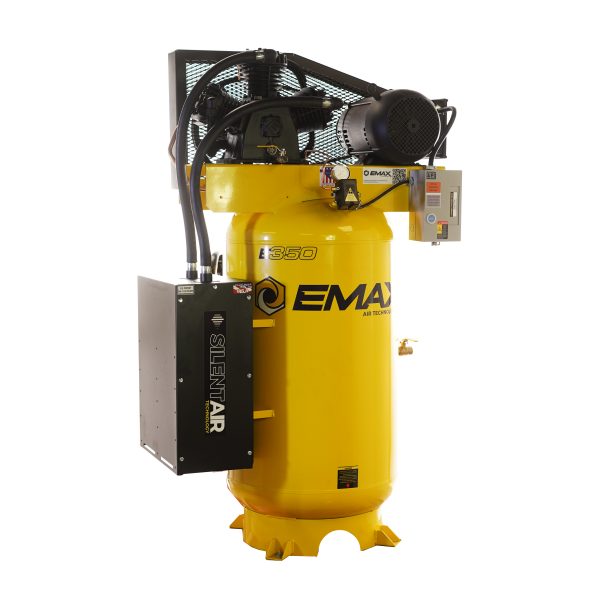

EMAX Silent Air Industrial 7.5HP 26CFM 1-Phase 3CYL 2 Stage 80 Gal.Vertical Stationary Electric Air Compressor-w/Splash Lube Pump,w/Isolator Pads
SKU: ESS07V080Y1
WHERE TO BUY →
Out of stock
Silent Air™
Patented Noise Suppression System – Up to 50% Quieter
Silent Air Technology
This intelligent design achieves up to 50% quieter operation—with noise levels at or below conversational volume (each 10 dBA drop equals a 50% reduction to the human ear). Unlike enclosed cabinet systems, which are costly and restrict service access, our silencer is costeffective, easy to service, and doesn’t compromise accessibility.
Air Filtration
Designed to reduce intake noise—the loudest source of compressor sound—this system
uses:
● Noise-reducing baffle plates
● High-capacity filter media
● Up to 1000% more filtration than standard setups
Noise Reduction
Our Silent Air™ patented silencer system sets us apart as one of the quietest compressor brands on the market.
Splash Pump
Operation
Splash lubrication systems work by using rod dippers that pass through the oil in the crankcase when the pistons are moving and splash the oil up onto the cylinders and pistons to lubricate them. Although this method is effective, it’s not precise. Parts of the pump may not be receiving enough oil. Where there is not enough oil, wear between critical components can become a costly issue… on the other hand too much oil can also be in issue as well.
Viscosity
Viscosity of the oil becomes important with splash method as well, if the oil is not thick enough it will not cling to the dippers as needed. So, although effective it is becoming an outdated method.
History
Traditional splash lubrication systems have been around since the first air compressor was produced.
Fixed Speed
Our Piston and Rotary Screw fixed speed compressors operate at a constant speed and do not vary in RPMs. All fixed speed rotary screw compressors operate at the same RPM during run cycles.
Belt Drive | V-Belt Design
Power You Can Rely On
Unlike competitors using narrow, single A-width belts, our compressors feature a multi-belt drive
system with B and C-width belts. This design provides:
● More surface area for better grip
● Reduced belt tension, minimizing strain on motor and compressor bearings
● Lower noise and vibration, extending belt and system life
The result is a durable, efficient, and a low-maintenance drive system built for thousands of hours
of trouble-free use.
| Brands | EMAX |
|---|---|
| HP | 7.5 |
| Tank Size | 80 |
| Voltage +/- 10% | 230 |
| Phase | 1 |
| Drive Type | Electric |
| Tank Drain | Manual |
| Pump Type | Splash |
| CFM | 26 |
| Silent Air | Y |
| Smart Air | N |
| Compressor Type | Piston |
| Motor Type | ODP |
| Tank Orientation | Vertical |
| Duty Cycle | 0.6 |
| Outlet Size | 3/4" |
| Belt Count | 2 |
| Pump Stage | 2 |
| Pump Model | APP3Y0732TR2 |
| Pump Riser | N |
| Belt Tensioner | N |
| Mag Starter | Y |
| Radiator | N |
| Continuous Run | N |
| Peak Starting Amps | 210 |
| CFM At Max PSI | 24 |
| Battery Included | N/A |
| Pump RPM | 770 |
| Motor RPM | 1740 |
| FLA + 1.15 Service Factor | 38.9 |
| Locked Rotor Amps | 210 |
| Recommended Breaker | 50 |
| Max PSI | 175 |
| Uncrated Weight | 581 |
| Crated Weight | 730 |
| Uncrated Length | 39 |
| Uncrated Width | 25 |
| Uncrated Height | 75 |
| Crated Length | 48" |
| Crated Width | 46" |
| Crated Height | 87" |
| Oil Capacity | 1.6 |
| Oil U/M | Quarts |
| Start Type | FIXED |
| Estimated Pump Life (Hours) | 50000 |
| Certifications | ETL,ASME,CRN |
| Service Kit | EFKIT008AWB |
