03 Air Dryers, Refrigerated Air Dryers

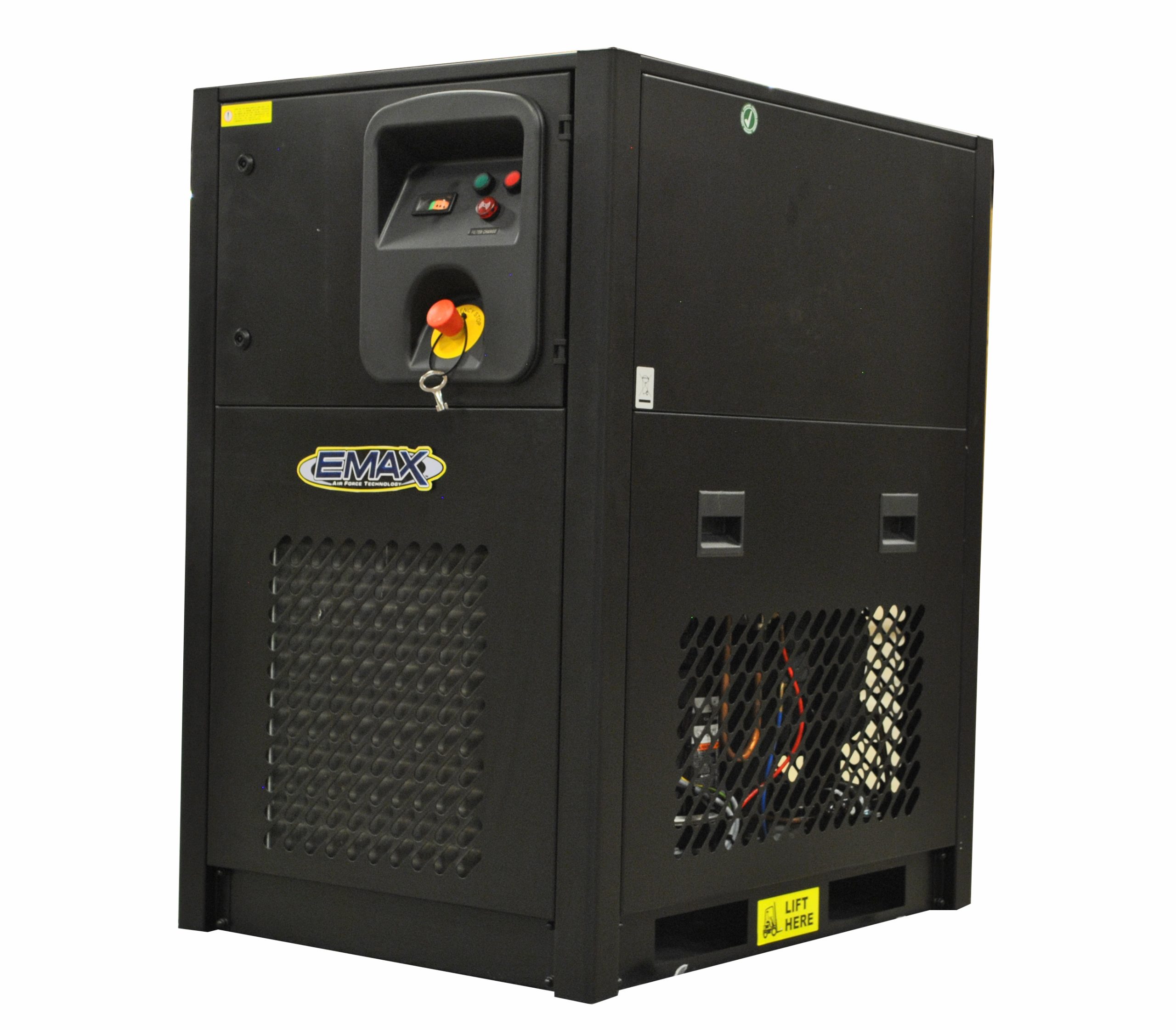

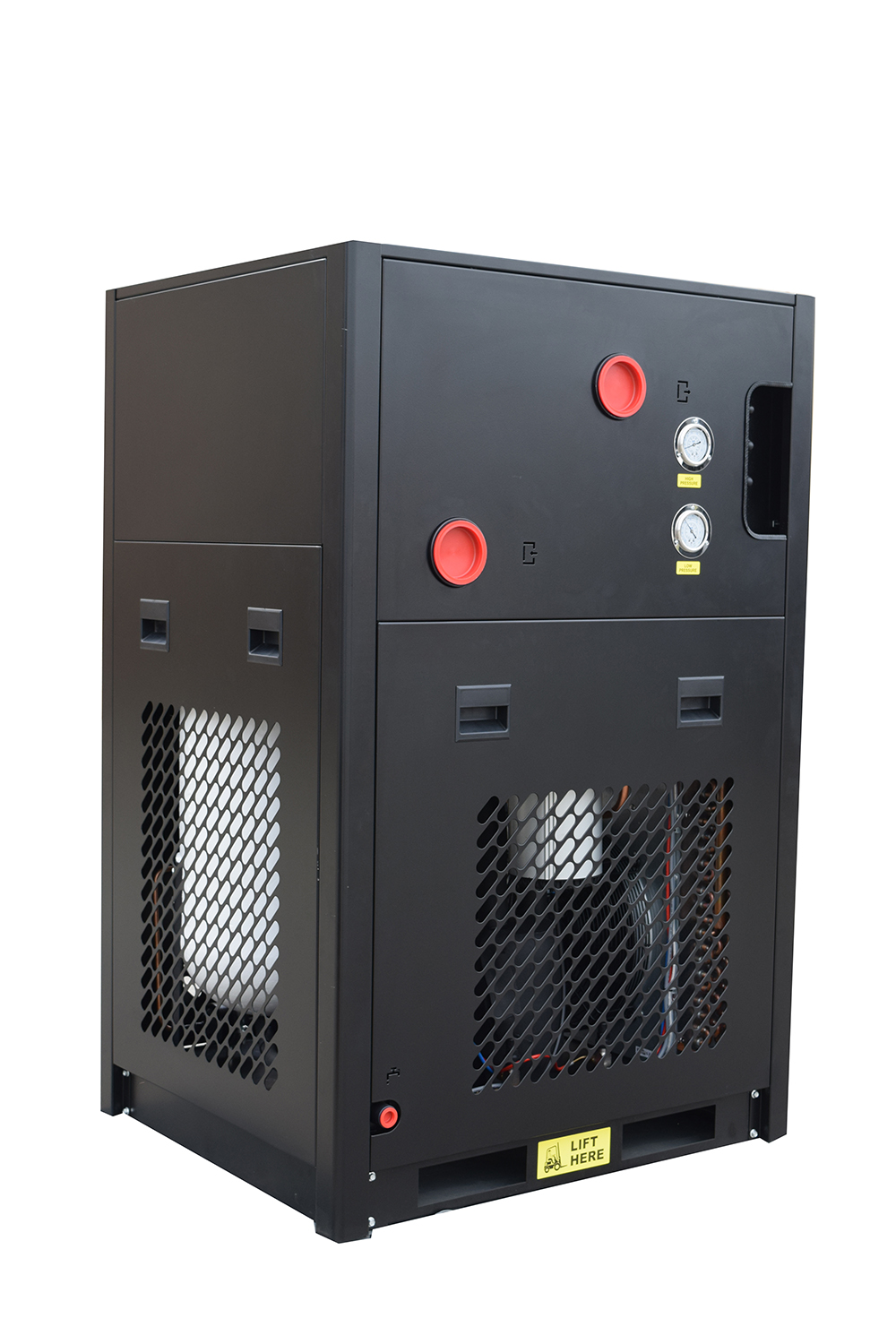

Emax 575CFM 3 Phase 460 VOLT Refrigerated Air Dryer w/ Built in Coalescing Filter and Auto drain
SKU: EDRCF4600575
Coalescent Fliter
Air Stream Filtering
A Coalescing filter is a device that removes oil and solids from the air stream.
Drain Trap
Coelescing filters also remove dirty matter and particulates into a drain trap.
| Weight | 661 lbs |
|---|---|
| Brands | EMAX |
| Voltage +/- 10% | 460 |
| Phase | 3 |
| CFM | 575.00 |
| Silent Air | N |
| Smart Air | N |
| Pump Riser | N |
| Belt Tensioner | N |
| Mag Starter | N |
| Radiator | N |
| Peak Starting Amps | 0.00 |
| Pump RPM | 0.00 |
| Motor RPM | 0.00 |
| FLA + 1.15 Service Factor | 11.20 |
| Locked Rotor Amps | 0.00 |
| Recommended Breaker | 15.00 |
| Max PSI | 230.00 |
| Uncrated Weight | 627.00 |
| Crated Weight | 661.00 |
| Uncrated Length | 39 |
| Uncrated Width | 33 |
| Uncrated Height | 58 |
| Crated Length | 48 |
| Crated Width | 33 |
| Crated Height | 63 |
| Oil Capacity | 0.00 |
| Estimated Pump Life (Hours) | 0.00 |
| Certifications | UL/CSE |
| Service Kit | FKIT015A |
| Battery Voltage | 0.00 |
| DBA | 0.00 |
| Max Ambient Temp (F°) | 122.00 |
| Max Inlet Temp (F°) | 140.00 |
| Refrigerant Type | R134A |
