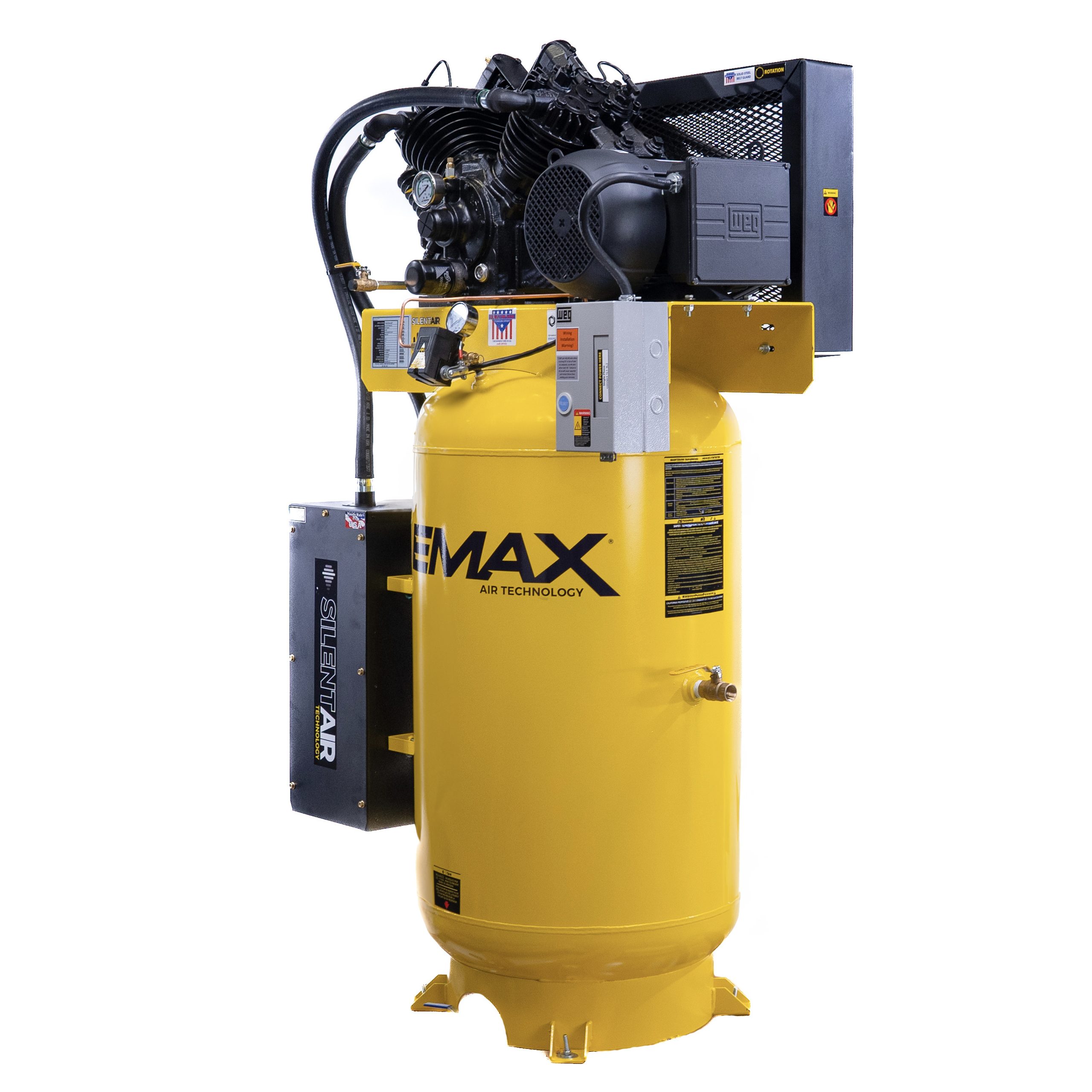

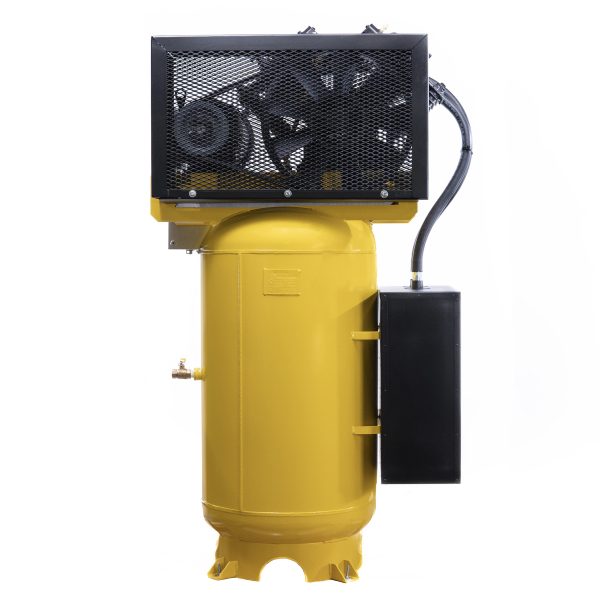

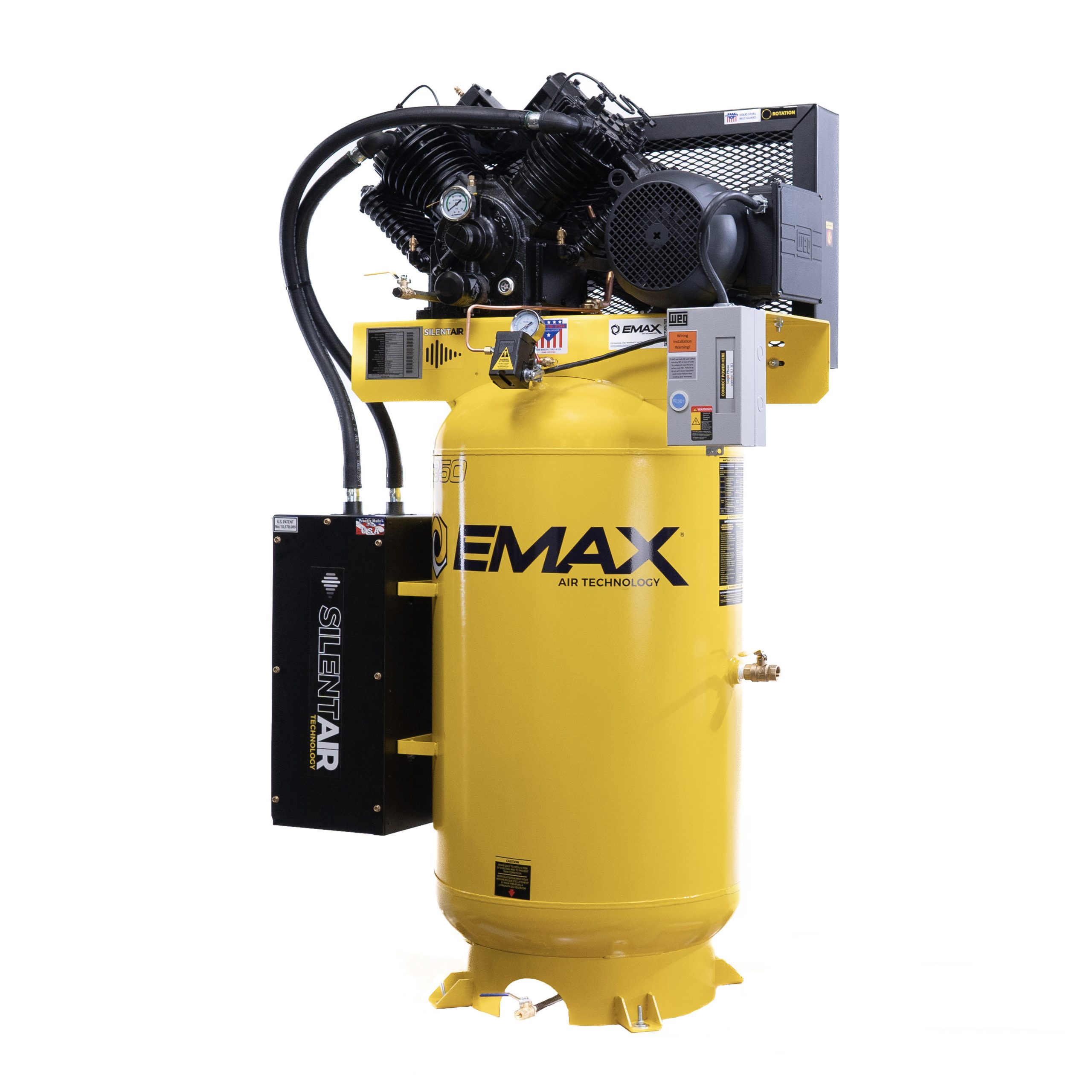

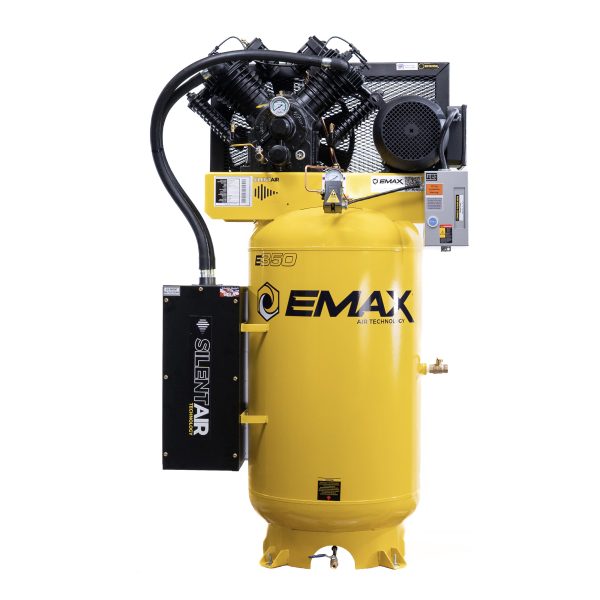

EMAX Silent Air Industrial 7.5HP 31CFM 1-Phase 2 Stage 80 gal.Vertical Stationary Electric Air Compressor-w/Pressure Lube Pump,w/Isolator Pads

EMAX

Pressure Lube

Pressure Lubrication is the second type of lubrication systems. This system is more technically advanced and a far more precise method to deliver oil to critical parts of the pump, resulting in longer pump life. The oil is pumped through an oil filter and into the pump where it is then recycled and reused. Since the oil pump is delivering the oil more efficiently the viscosity of the oil is less critical than with a splash system. In the air compressor industry, it is typically more costly to upgrade to pressure lubrication systems. *Our high efficiency manufacturing facility 0to the tank. With this radiator, we target outlet air to the tank within 10 degrees of ambient temperature.


Silent Air

Noise Reduction

Our Patented Silent Air system works by dissipating compressor intake noise through a series of noise cancellation plates, reducing DBA ratings by up to 50%. Silent air compressors operate at a normal conversation level in comparison to traditional compressors that operate at the level of a police siren.

Air Filtration

This low-profile system not only makes the compressor quieter but also adds four levels of air filtration.

Silent Air Technology

  • Significantly lowers the risk of hearing damage
  • Decrease in employee turnover
  • Enhances workplace satisfaction

Belt Drive

Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes.



SKU: ES07V080V1 Categories: , ,
Brands

EMAX

HP

7.5

Tank Size

80

Voltage +/- 10%

230

Phase

1

Drive Type

Electric

Tank Drain

Manual

Pump Type

Pressure

CFM

31

Silent Air

Y

Smart Air

N

Compressor Type

Piston

Motor Type

ODP

Tank Orientation

Vertical

Duty Cycle

0.6

Outlet Size

3/4"

Belt Count

2

Pump Stage

2

Pump Model

APP4V1043TP

Pump Riser

N

Belt Tensioner

N

Mag Starter

Y

Radiator

N

Continuous Run

N

Peak Starting Amps

210

CFM At Max PSI

26

Battery Included

N/A

Pump RPM

590

Motor RPM

1740

FLA + 1.15 Service Factor

38.9

Locked Rotor Amps

135

Max PSI

175

Uncrated Weight

712

Crated Weight

861

Uncrated Length

39

Uncrated Width

25

Uncrated Height

75

Crated Length

48"

Crated Width

46"

Crated Height

87"

Oil Capacity

2

Oil U/M

Quarts

Start Type

FIXED

Estimated Pump Life (Hours)

70000

Certifications

ETL,ASME,CRN

Service Kit

EFKIT008AWBS
