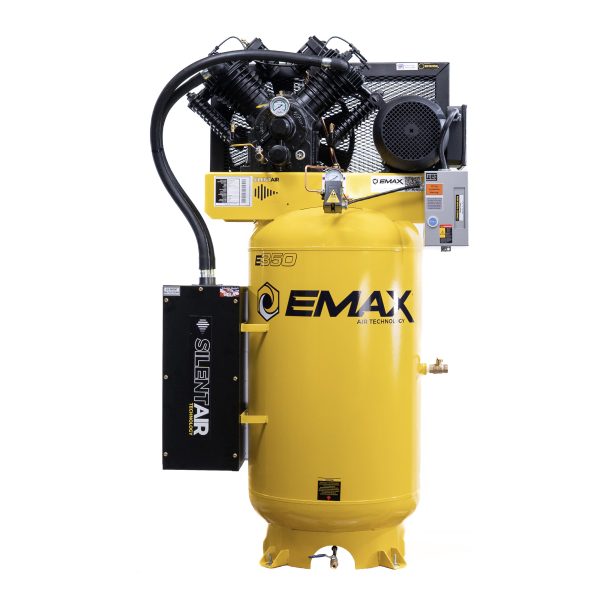

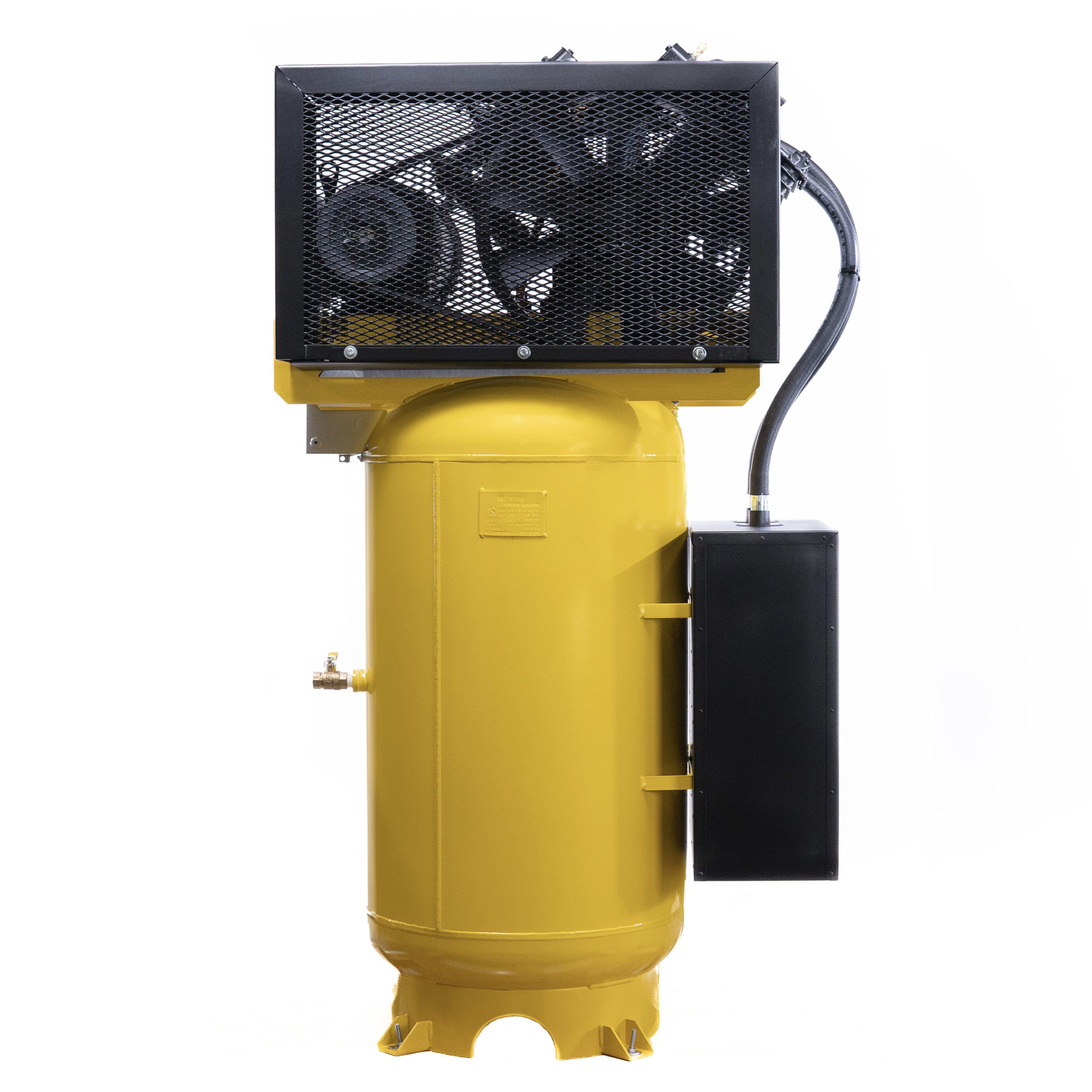

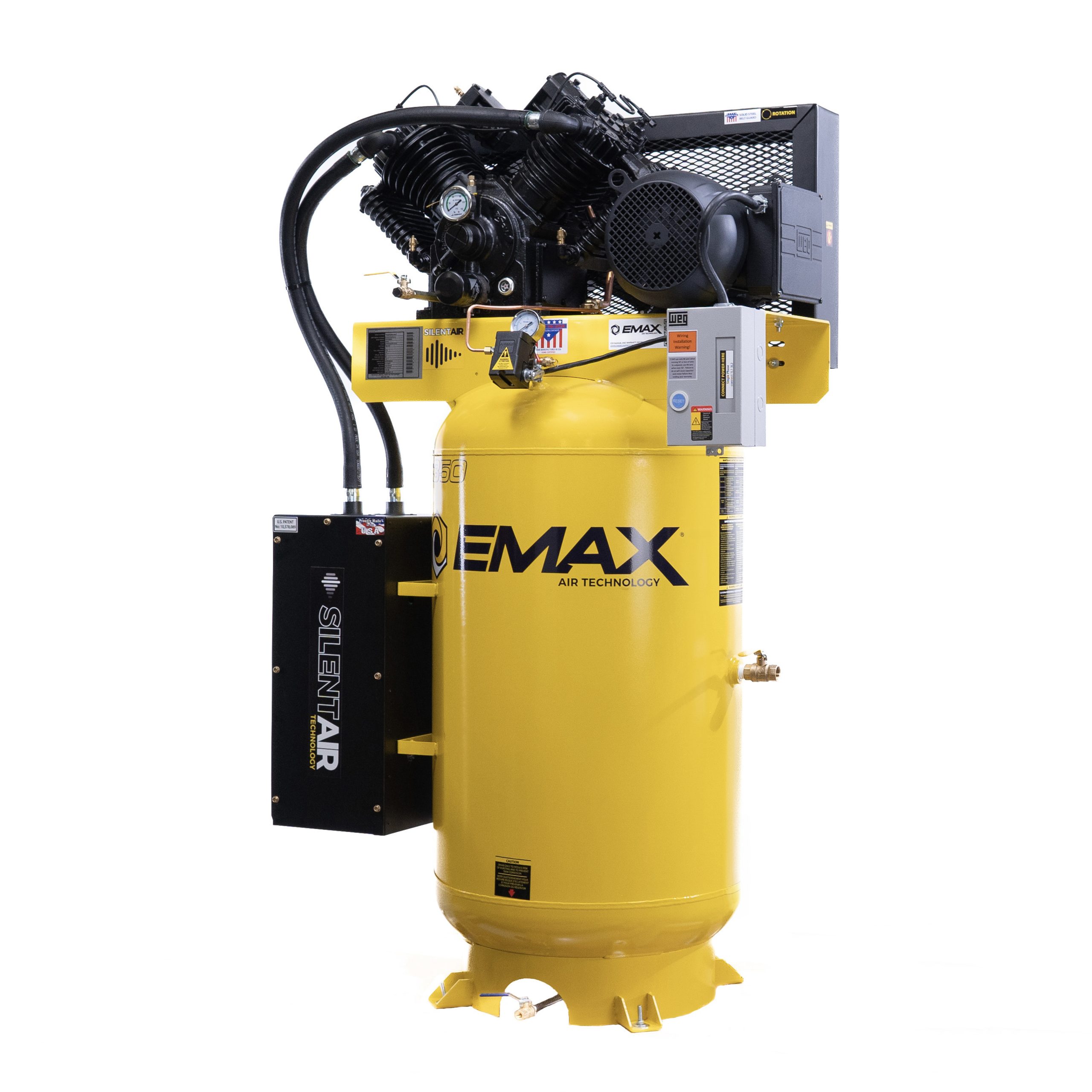

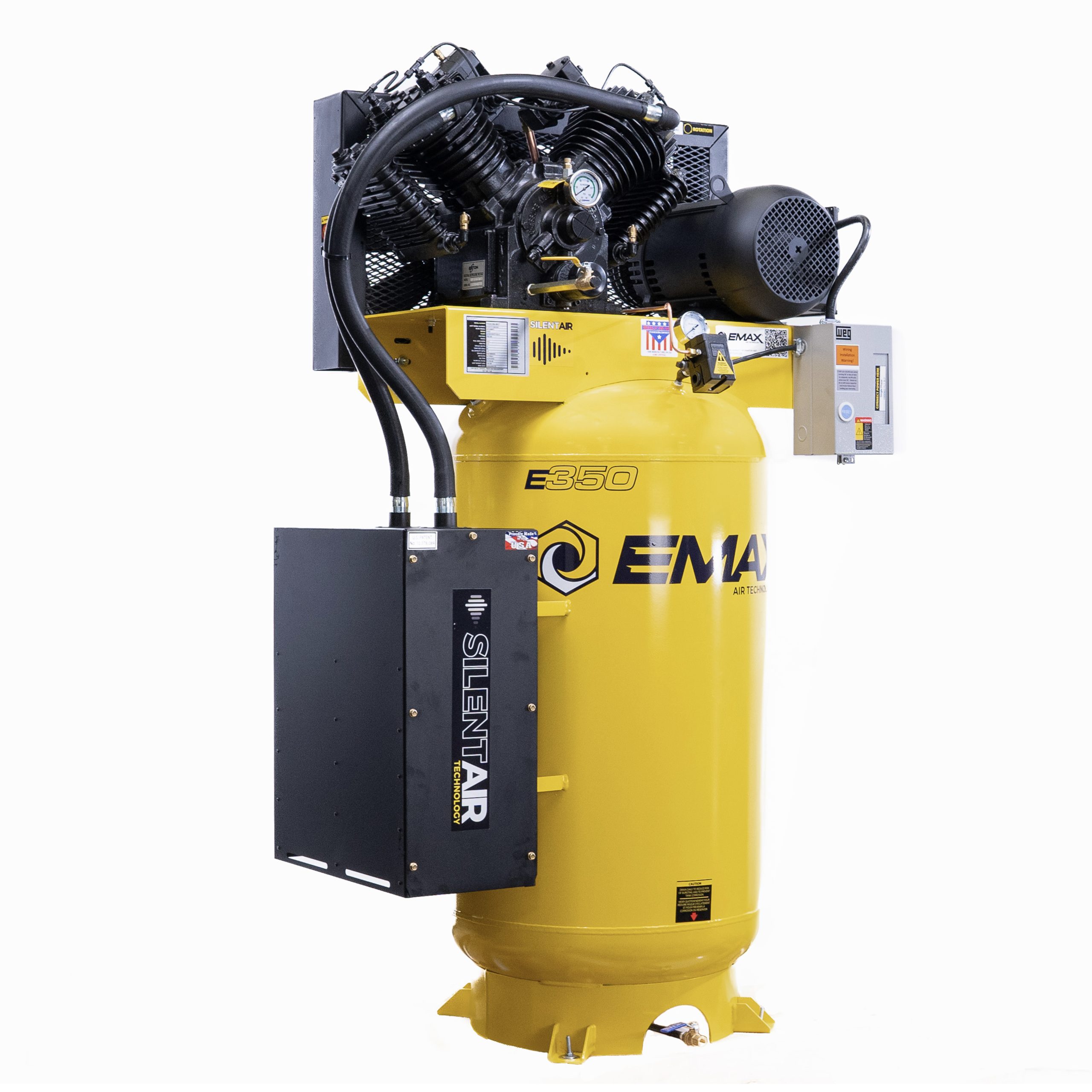

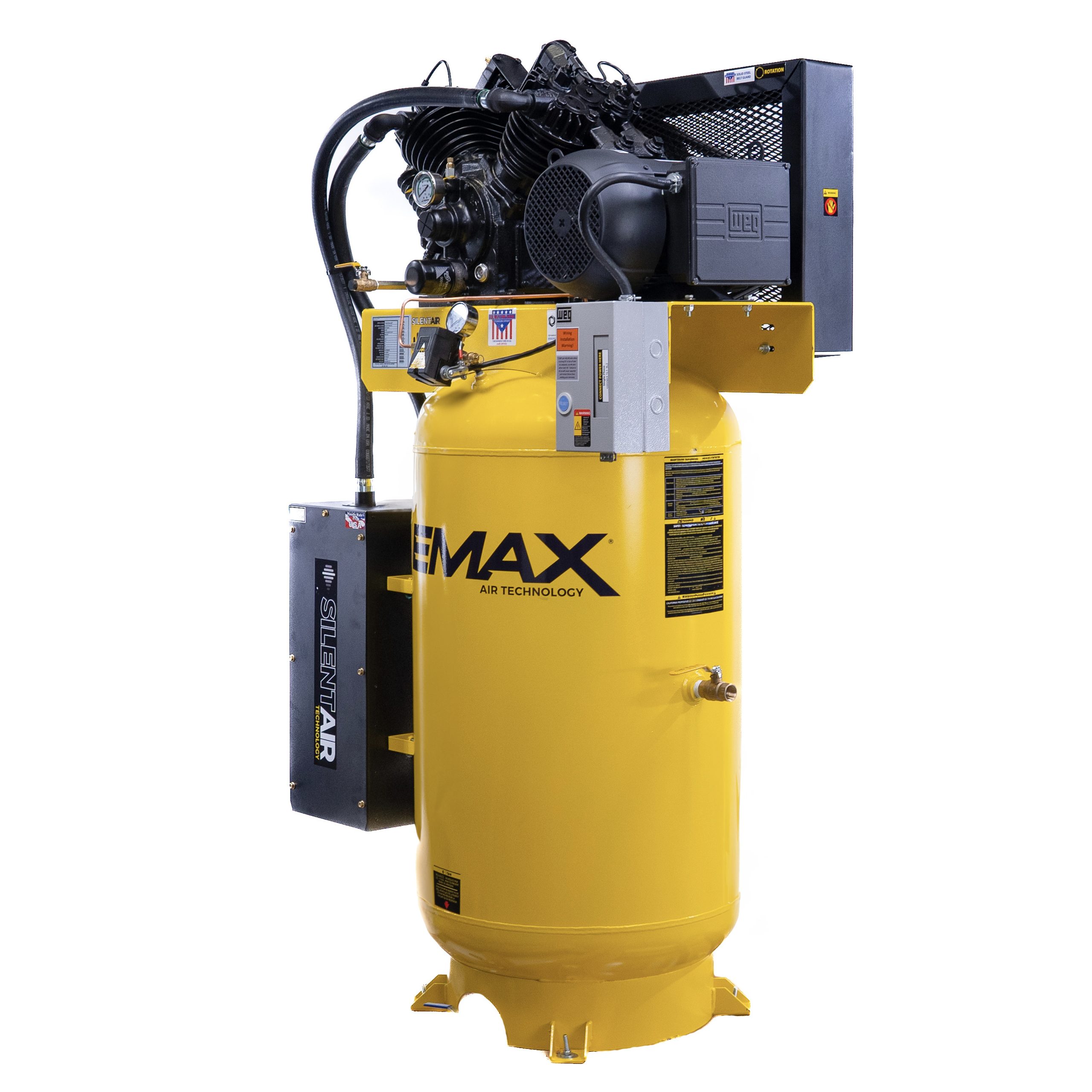

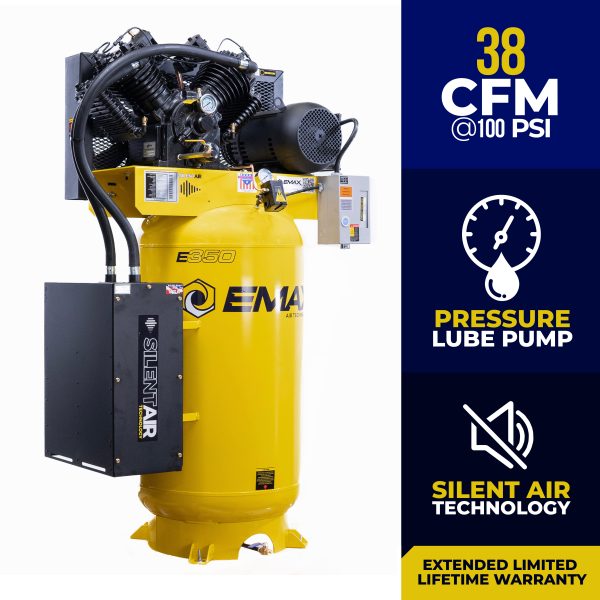

EMAX Silent Air Industrial 10HP 38CFM 1-Phase 80 gal. Vertical Industrial Electric Air Compressor-w/Pressure Lube Pump,w/Isolator Pads
Pressure Lube
Pressure Lubrication is the second type of lubrication systems. This system is more technically advanced and a far more precise method to deliver oil to critical parts of the pump, resulting in longer pump life. The oil is pumped through an oil filter and into the pump where it is then recycled and reused. Since the oil pump is delivering the oil more efficiently the viscosity of the oil is less critical than with a splash system. In the air compressor industry, it is typically more costly to upgrade to pressure lubrication systems. *Our high efficiency manufacturing facility 0to the tank. With this radiator, we target outlet air to the tank within 10 degrees of ambient temperature.
Silent Air
Noise Reduction
Our Patented Silent Air system works by dissipating compressor intake noise through a series of noise cancellation plates, reducing DBA ratings by up to 50%. Silent air compressors operate at a normal conversation level in comparison to traditional compressors that operate at the level of a police siren.
Air Filtration
This low-profile system not only makes the compressor quieter but also adds four levels of air filtration.
Silent Air Technology
- Significantly lowers the risk of hearing damage
- Decrease in employee turnover
- Enhances workplace satisfaction
Belt Drive
Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes.
Brands | EMAX |
---|---|
HP | 10 |
Tank Size | 80 |
Voltage +/- 10% | 230 |
Phase | 1 |
Drive Type | Electric |
Tank Drain | Manual |
Pump Type | Pressure |
CFM | 38 |
Silent Air | Y |
Smart Air | N |
Compressor Type | Piston |
Motor Type | ODP |
Tank Orientation | Vertical |
Duty Cycle | 0.6 |
Outlet Size | 3/4" |
Belt Count | 2 |
Pump Stage | 2 |
Pump Model | APP4V1043TP |
Pump Riser | N |
Belt Tensioner | N |
Mag Starter | Y |
Radiator | N |
Continuous Run | N |
Peak Starting Amps | 270 |
CFM At Max PSI | 34 |
Pump RPM | 800 |
Motor RPM | 1740 |
FLA + 1.15 Service Factor | 52.9 |
Locked Rotor Amps | 270 |
Recommended Breaker | 60 |
Max PSI | 175 |
Uncrated Weight | 749 |
Crated Weight | 898 |
Uncrated Length | 39 |
Uncrated Width | 25 |
Uncrated Height | 75 |
Crated Length | 48" |
Crated Width | 46" |
Crated Height | 87" |
Oil Capacity | 2 |
Oil U/M | Quarts |
Start Type | FIXED |
Estimated Pump Life (Hours) | 70000 |
Certifications | ETL,ASME,CRN |
Service Kit | EFKIT008AWBS |
