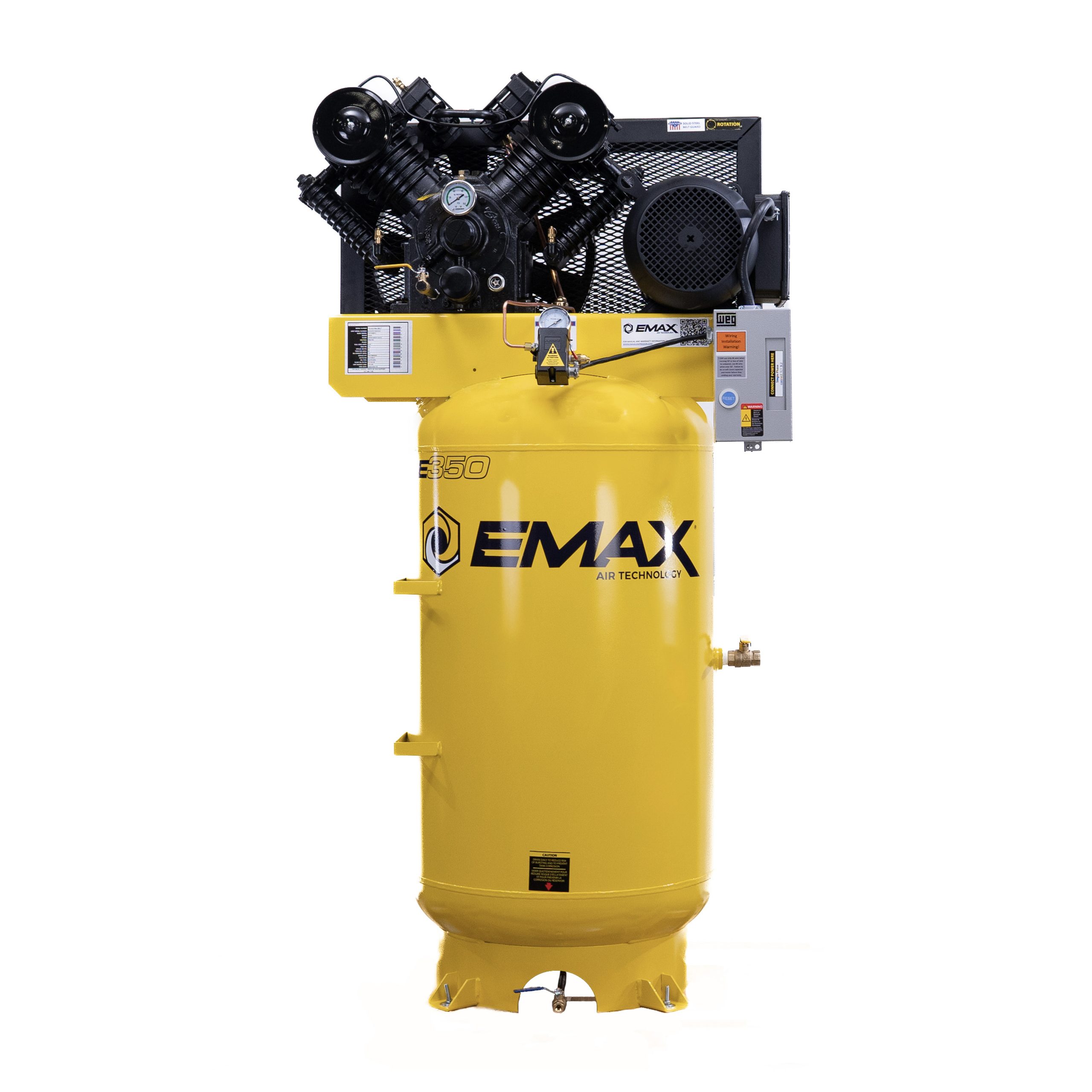

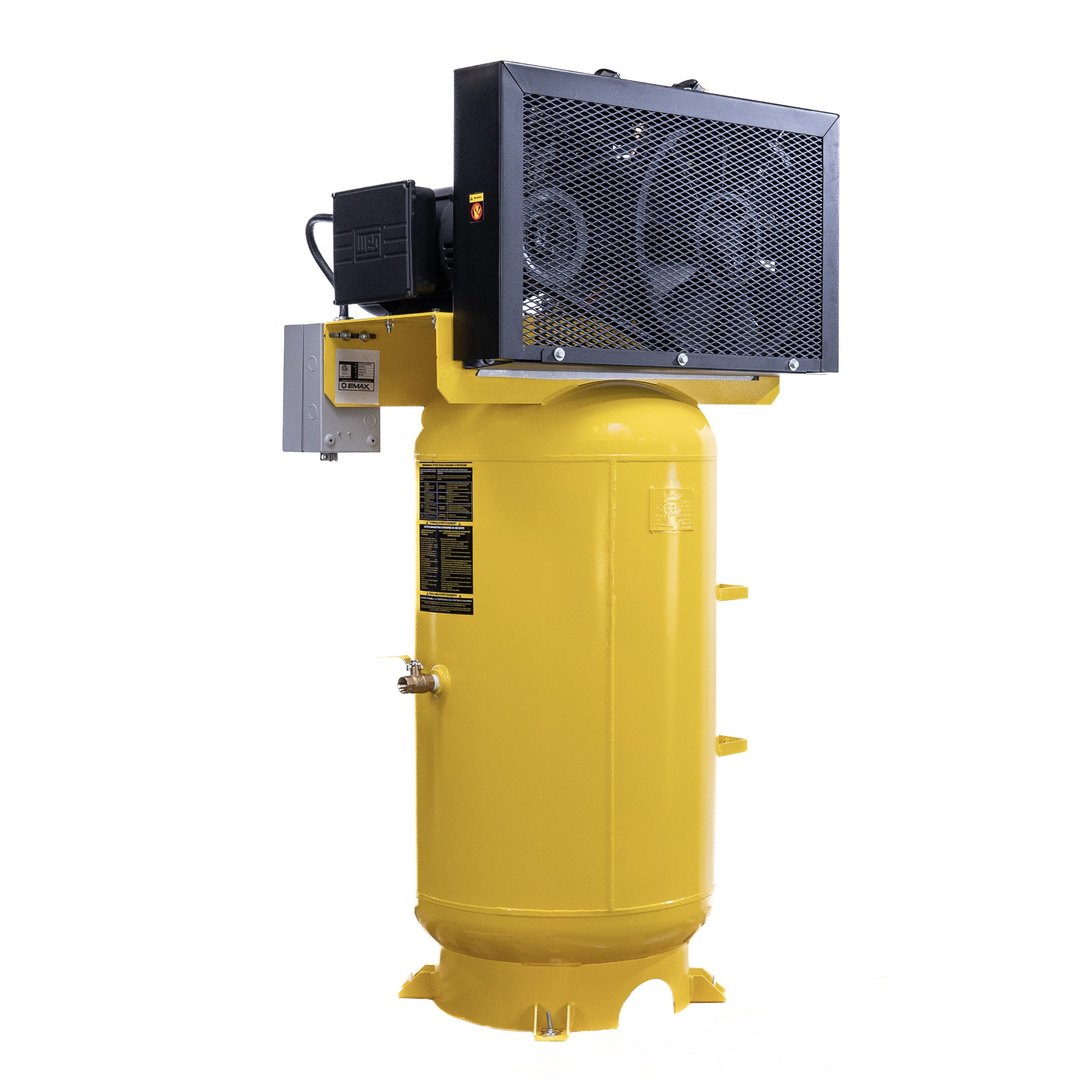

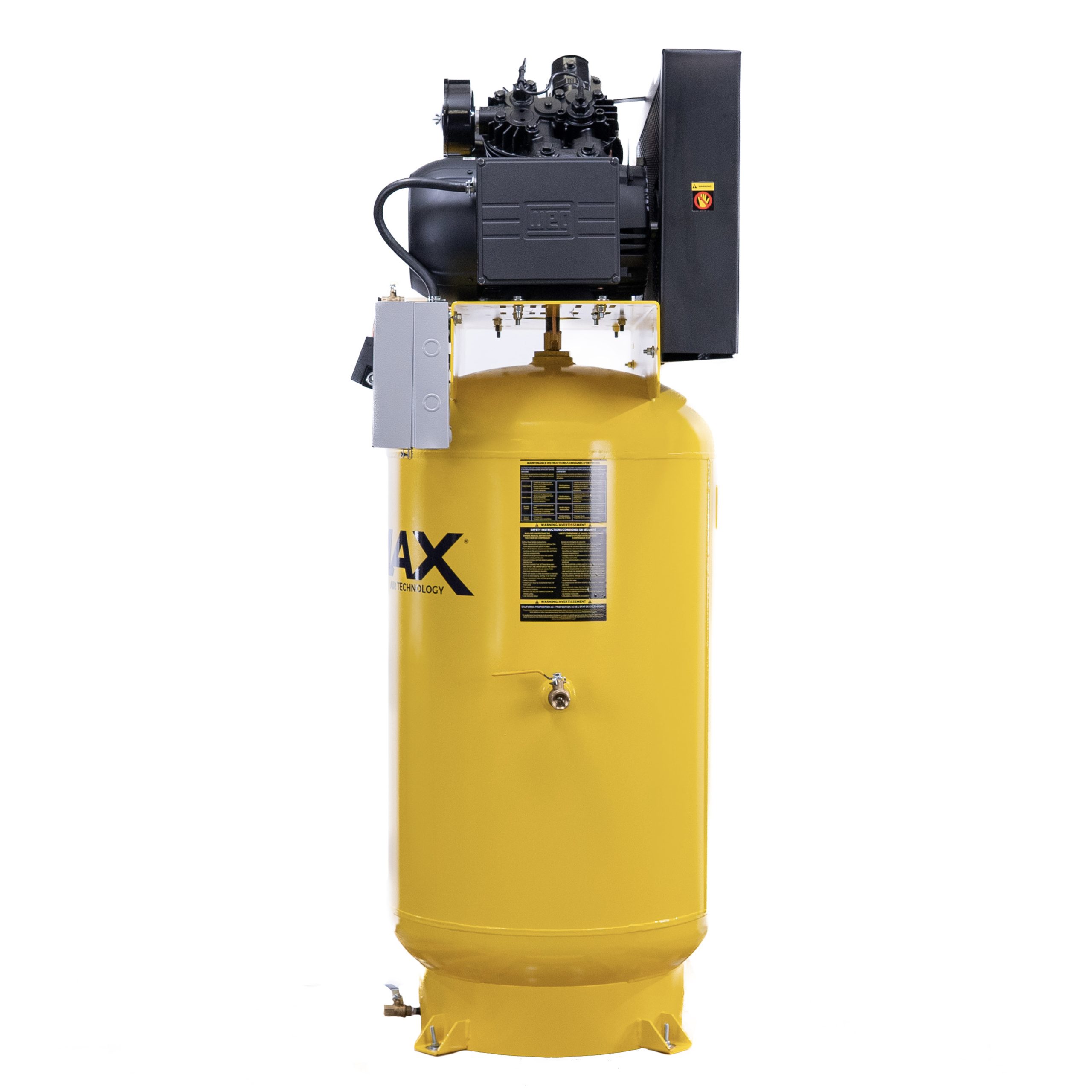

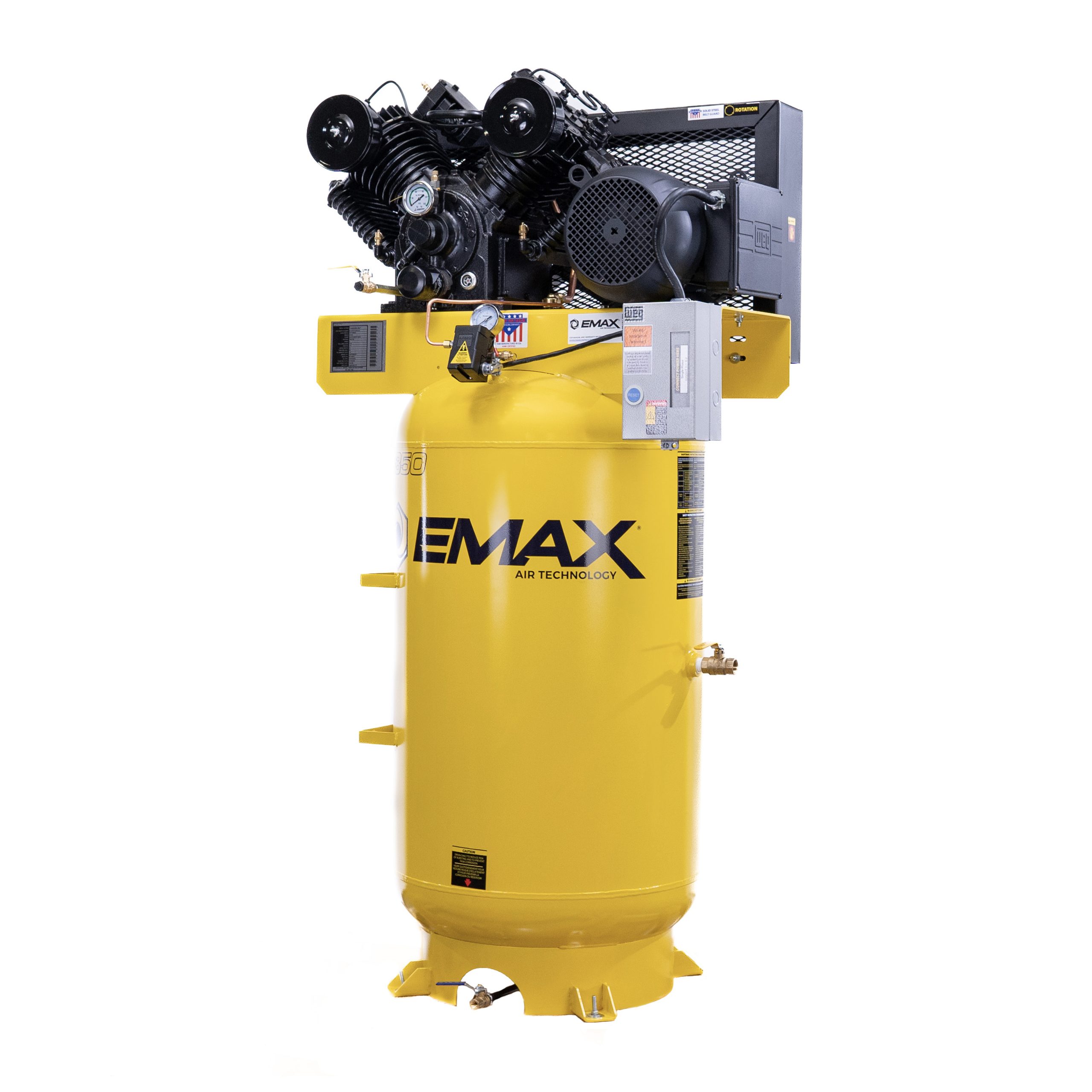

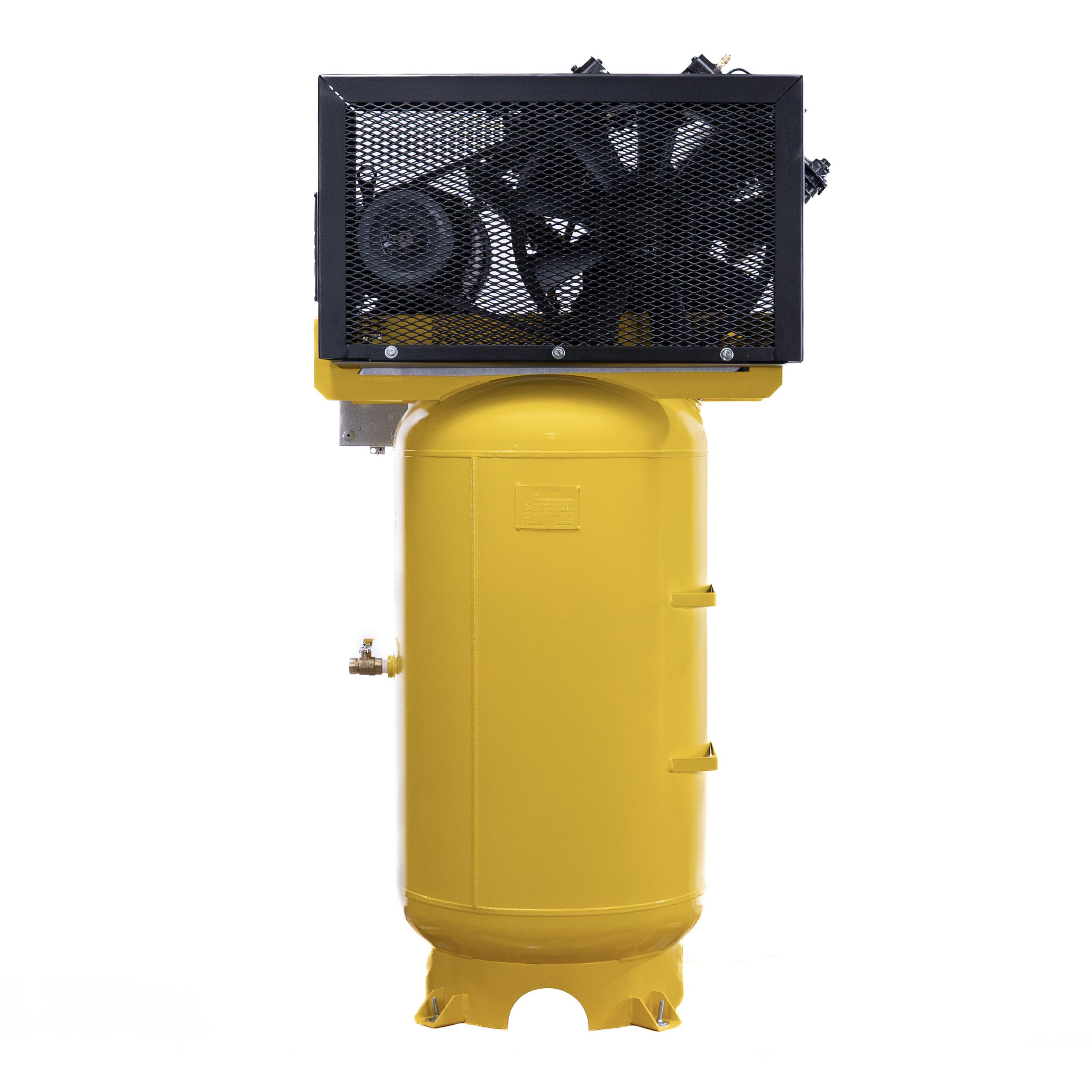

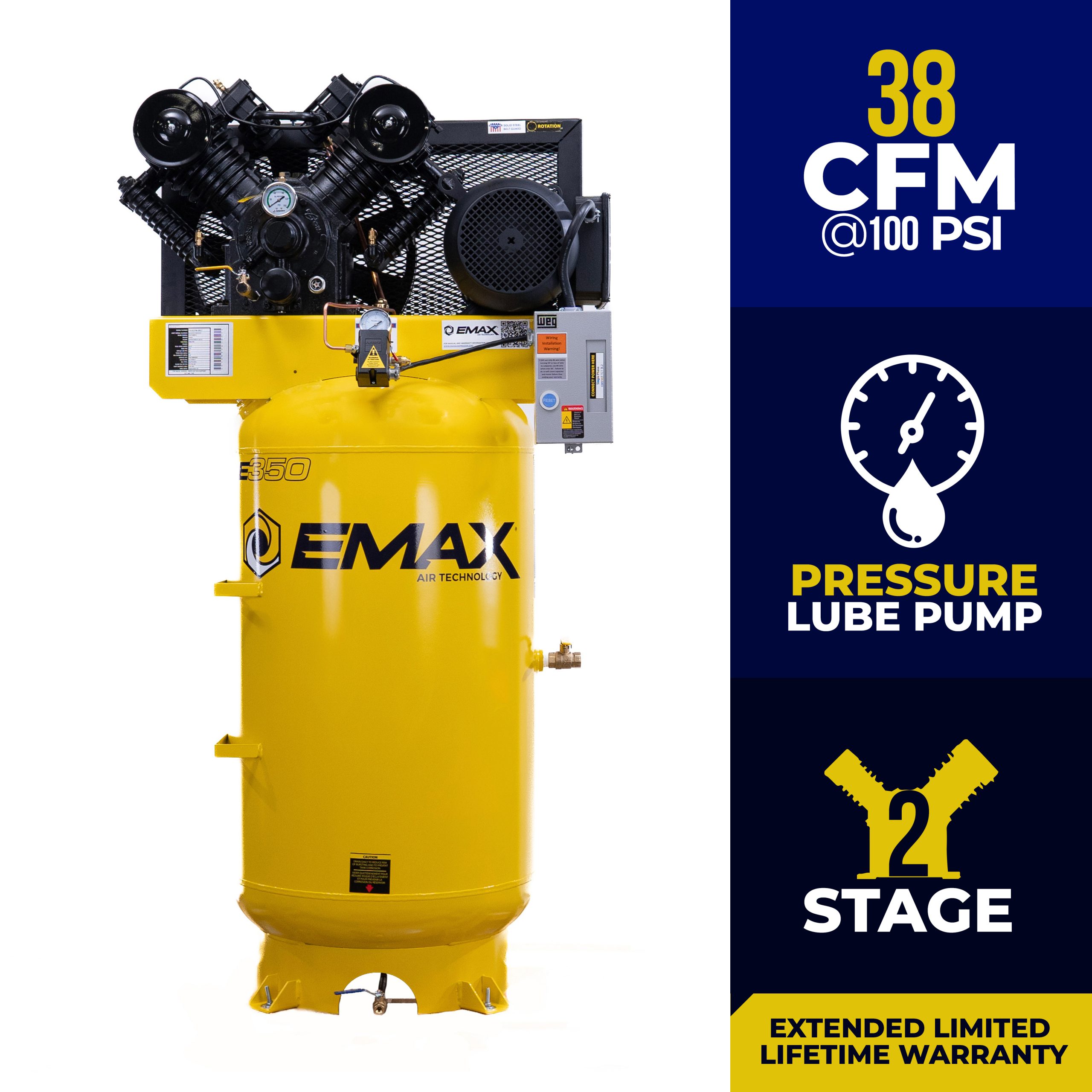

EMAX Industrial 10HP 38CFM 1-Phase 80 gal. Vertical Industrial Electric Air Compressor-w/Pressure Lube Pump,w/Isolator Pads

EMAX

Pressure Lube

Pressure Lubrication is the second type of lubrication systems. This system is more technically advanced and a far more precise method to deliver oil to critical parts of the pump, resulting in longer pump life. The oil is pumped through an oil filter and into the pump where it is then recycled and reused. Since the oil pump is delivering the oil more efficiently the viscosity of the oil is less critical than with a splash system. In the air compressor industry, it is typically more costly to upgrade to pressure lubrication systems. *Our high efficiency manufacturing facility 0to the tank. With this radiator, we target outlet air to the tank within 10 degrees of ambient temperature.


Belt Drive

Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes.



SKU: EI10V080V1 Categories: , ,
Weight 830 lbs
Brands

EMAX

HP

10

Tank Size

80

Voltage +/- 10%

230

Phase

1

Drive Type

Electric

Tank Drain

Manual

Pump Type

Pressure

CFM

38

Silent Air

N

Smart Air

N

Compressor Type

Piston

Motor Type

ODP

Tank Orientation

Vertical

Duty Cycle

0.6

Outlet Size

3/4"

Belt Count

2

Pump Stage

2

Pump Model

APP4V1043TP

Pump Riser

N

Belt Tensioner

N

Mag Starter

Y

Radiator

N

Continuous Run

N

Peak Starting Amps

270

CFM At Max PSI

34

Pump RPM

730

Motor RPM

1740

FLA + 1.15 Service Factor

52.9

Locked Rotor Amps

270

Max PSI

175

Uncrated Weight

712

Crated Weight

861

Uncrated Length

37

Uncrated Width

25

Uncrated Height

75

Crated Length

48"

Crated Width

46"

Crated Height

87"

Oil Capacity

2

Oil U/M

Quarts

Start Type

FIXED

Estimated Pump Life (Hours)

70000

Certifications

ETL,ASME,CRN

Service Kit

EFKIT008WBS
