03 Air Dryers, Refrigerated Air Dryers

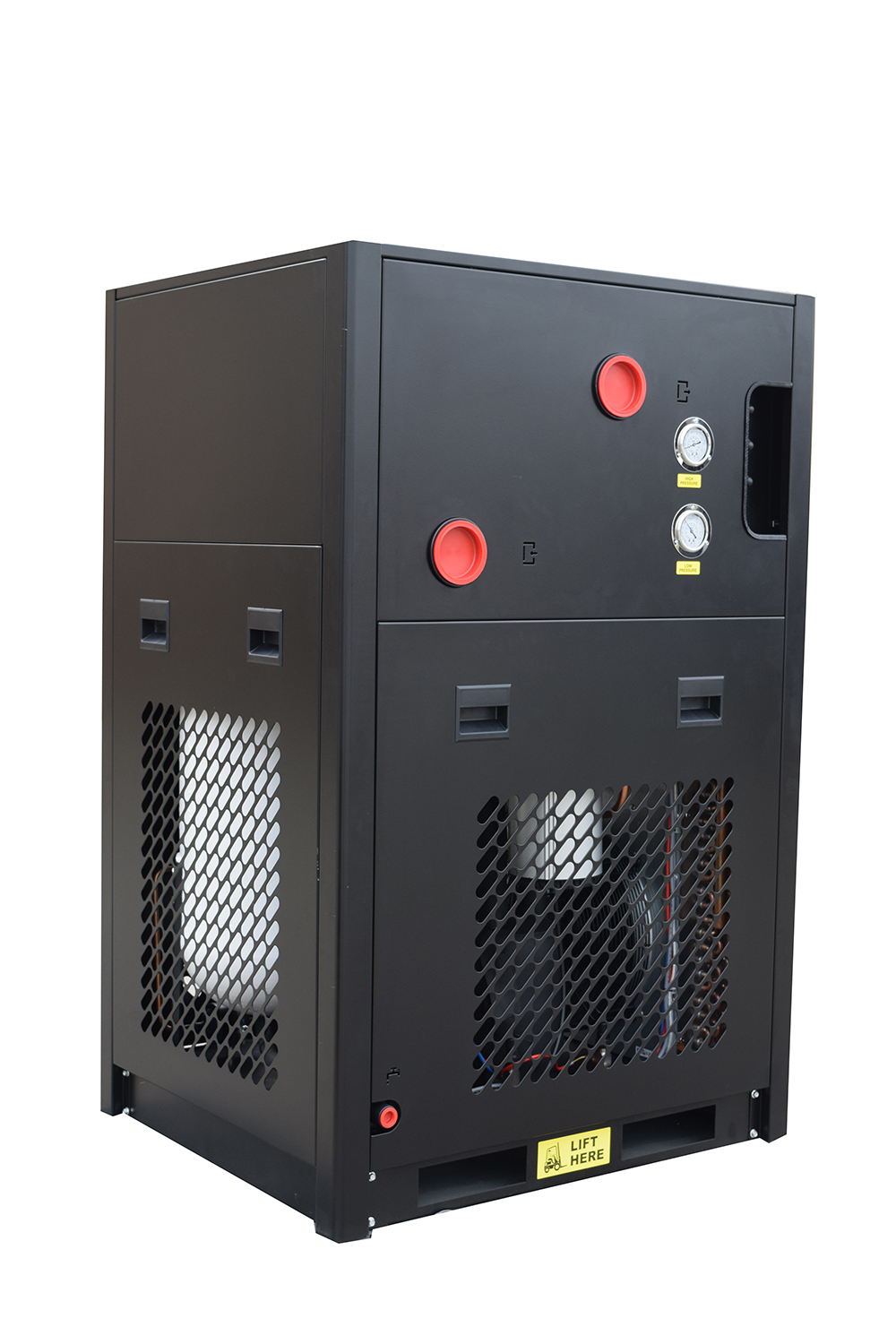

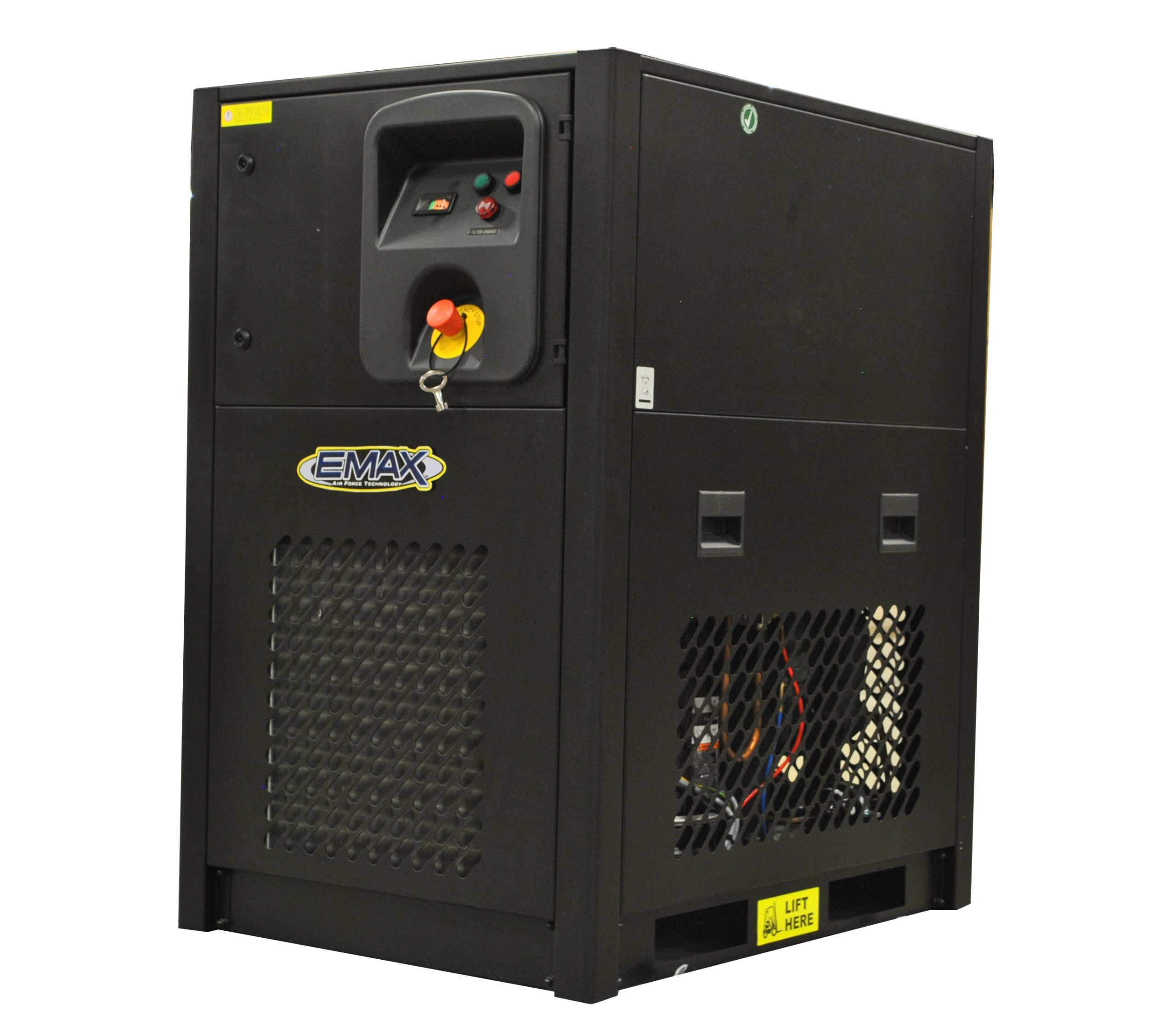

Emax 850CFM 3 Phase 460 VOLT Refrigerated Air Dryer w/ Built in Coalescing Filter and Auto drain
Coalescent Fliter
Air Stream Filtering
A Coalescing filter is a device that removes oil and solids from the air stream.
Drain Trap
Coelescing filters also remove dirty matter and particulates into a drain trap.
| Brands | EMAX |
|---|---|
| Voltage +/- 10% | 460 |
| Phase | 3 |
| CFM | 850 |
| Air Inlet/Outlet | 3"" |
| Dew Point | 37 |
| Max Ambient Temp (F°) | 122 |
| Max Inlet Temp (F°) | 140 |
| Refrigerant Type | R134A |
| CFM At Max PSI | 850 |
| FLA + 1.15 Service Factor | 16.9 |
| Recommended Breaker | 20 |
| Max PSI | 230 |
| Uncrated Weight | 863 |
| Crated Weight | 913 |
| Uncrated Length | 46 |
| Uncrated Width | 31 |
| Uncrated Height | 68 |
| Crated Length | 51 |
| Crated Width | 36 |
| Crated Height | 74 |
| Certifications | UL/CSE |
| Service Kit | FKIT016 |
