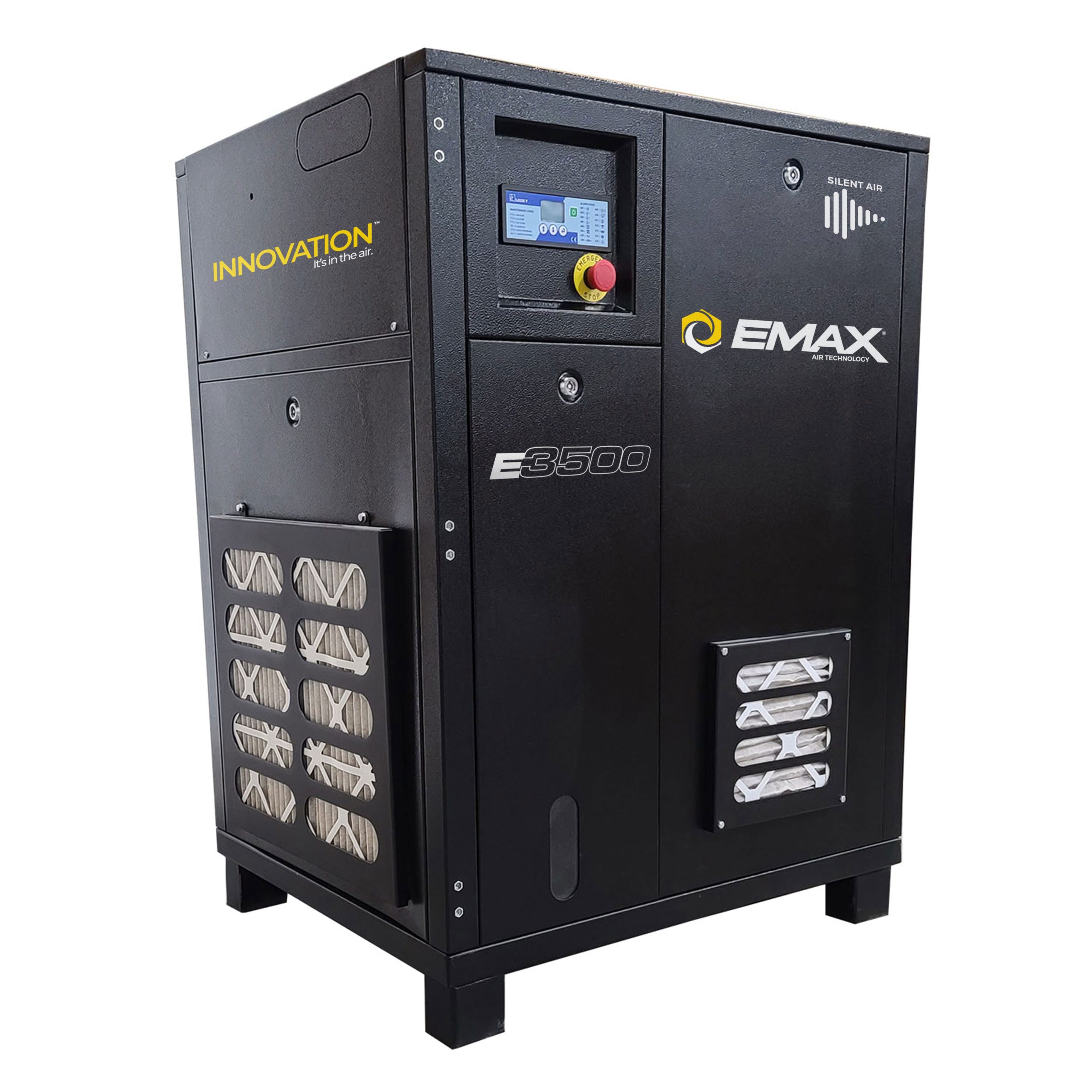

EMAX 10HP 3PH 208V 39CFM Fixed Speed Industrial Rotary Screw Compressor-Cabinet Only -60,000 HR pump life
Fixed Speed
Our Piston and Rotary Screw fixed speed compressors operate at a constant speed and do not vary in RPMs. All fixed speed rotary screw compressors operate at the same RPM during run cycles.
Air End
Operation
Rotary Air ends are devices that compress air. Air ends consist of an oil injected male and female rotor. These air ends are engineered for up to 100% duty cycle and are relatively quiet with life expectations up to 150,000 hours.
Continuous Airflow
Rotary Screw air ends are designed to produce continuous, steady airflow. Using this ultimate design criterion, screw air ends are great for applications where consistent airflow is a must, for example in industrial plants and operations.
Reliability and Durability
Screw Air Ends are reliable and durable even in harsh conditions. For example, mining and construction rigs (as well as firefighting equipment manufacturers) choose rotary screw air ends due to their reliability and durability.
150 PSI Maximum
By using oil injected rotary screw air ends, you can economically achieve 150 PSI maximum. If higher pressures are required, multi-stage reciprocating (pistons) are needed.
Programmable Logic Controller
Our PLC Puts You In Control Of the Smart Air Compressor. The digital PLC enables manual or remote pressure adjustments from 70 PSI to 175 PSI. It includes Hertz display while unit is running & provides programmable timed starts and stops for each day of the week. It also displays maintenance alarms, indicating when it’s time to provide service or change filters and oil. Variable Speed Saves You Money in Operating expense. Wi-Fi and ethernet enabled for monitoring and controlling dozens of functions enabling users to CUSTOMIZE operating settings 7x24x365 using a mobile phone, laptop, or other smart device.
Easily Adjust Pressure
The digital PLC enables manual or remote pressure adjustments from 70 PSI to 175 PSI.
Maintenance Notifications
It also displays maintenance alarms, indicating when it’s time to provide service or change filters and oil.
Energy Savings
Variable Speed Saves You Money in Operating expense.
Display
It includes Hertz display while a unit is running & provides programmable timed starts and stops for each day of the week.
WiFi/Ethernet Enabled
Our PLCs are Wi-Fi and ethernet enabled for monitoring and controlling dozens of functions enabling users to CUSTOMIZE operating settings 7x24x365 using a mobile phone, laptop, or other smart device.
Belt Drive
Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes.
Fan
Dryer Fans
Dryer Fans are engineered to cool the condenser. The condenser coil circulates a hot refrigerant from heat pulled from the compressed air. This hot refrigerant is then cooled by a cooling fan which circulates ambient air through the condenser coil radiator.
Rotary Screw Cooling Fan/Radiator
Our Rotary Screw compressors are equipped with a split bar radiator and a circulating fan. The fan cools the compressor oil and the air end air to the tank, reducing wear and tear and excessive moisture from the air system.
| Brands | EMAX |
|---|---|
| HP | 10 |
| Voltage +/- 10% | 230 |
| Phase | 3 |
| Drive Type | Electric |
| CFM | 39.9 |
| Silent Air | N |
| Smart Air | N |
| Compressor Type | ROTARY |
| Motor Type | TEFC |
| Duty Cycle | 1 |
| Belt Count | 2 |
| Pump Stage | 1 |
| Pump Riser | N |
| Belt Tensioner | N |
| Mag Starter | N |
| Radiator | N |
| Continuous Run | N |
| Peak Starting Amps | 171 |
| Motor RPM | 1750 |
| FLA + 1.15 Service Factor | 28.8 |
| Locked Rotor Amps | 171 |
| Recommended Breaker | 40 |
| Max PSI | 145 |
| Uncrated Weight | 660 |
| Uncrated Length | 33 |
| Uncrated Width | 24 |
| Uncrated Height | 42 |
| Crated Length | 48 |
| Crated Width | 43 |
| Crated Height | 49 |
| Oil Capacity | 1.33 |
| Oil U/M | Gallons |
| Estimated Pump Life (Hours) | 60000 |
| Certifications | UL/CSE |
| Service Kit | SKIT001AWB |
